Double Stage PP/PE Film Plastic Bags Pelletizing Granulator Machine

Product Description

Double Stage PP/PE Film Plastic Bags Pelletizing Granulator Machine
PE PP Plastic film granulator / waste film pelletizing machine
1. Capacity: 100kg/h-800kg/h
2. Type: Water-ring pelletizing and stand type
Pp pe film pelletizing line/ Plastic film granulator
Usage:
This water-cooling single screw plastic pellet making machine is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.
And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.
Characteristic:
1. Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy: Very strong and long life.
2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign: Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: It's the ideal waste plastics regenerative pelletizer machine for nowadays.
The process flow of 250kg PE pelletizing line as following: ---watering cutter
Screw feeder →Side force feeder→ SJ120/33 Extruding system →High speed screen exchanging→ SJ120/10 Extruding system → Water pelletizing machine→ Dewater machine→ Vibrator sieve → air blower system → Silo

SJ series single-stage pe pp film & flake granulator machine
Model	SJ-65		SJ-80		SJ-100	SJ-120		SJ-150		SJ-200
Screw Dia.	65		80		100	120		150		200
L/D	28-30		28-30		28-30	28-30		28-30		28-30
Capacity	60-80kg/h		80-100kg/h		150kg/h	300kg/h		400kg/h		500kg/h
SJ series double-stage pe pp film & flake granulator machine
Model		SJ-100/100		SJ-120/120			SJ-150/150		SJ-200/200
Screw Dia.		100		120			150		200
L/D		28-30 10-15		28-30 10-15			28-30 10-15		28-30 10-15
Capacity		120-180kg/h		220-300kg/h			300-400kg/h		500-600kg/h

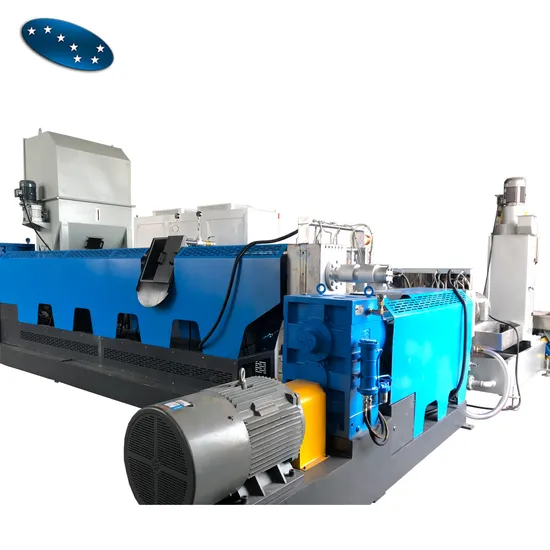

More pictures of the machine for your reference as below:

---
