Alloy Tungsten Rod, Alloy Molybdenum Rod, Molybdenum Copper Alloy Ground Rod

Product Description

Polished Molybdenum bar/rod, Alloy Tungsten Rod, Alloy Molybdenum Rod, Molybdenum Copper Alloy Ground Moly Rod alloy molybdenum MoLa rod, alloy TZM rod, MoCu rod
1) Specification:
99.95% Pure Molybdenum rods
1) Mo purity: Mo>=99.95%
2) Density: >=10.1g/cm3
3) Dia: 1.0-120mm, size for the polished molybdenum rods diameter1.0-120mm Length<2500mm
4) Surface: Polished, ground, cleaned, black.
5) Standard: ASTM B386
99.95% Pure Tungsten rods Excellent price 99.95% black ground polished tungsten/molybdenum rods 1) Purity: W≥99.95%
2) Forged density:>19.2g/cm3
3) Welding tungsten rod: WT WL WP WC WY, from diameter1.0-10mm Length: 150/175/1100mm 4) Surface:black,ground,polished
5) Rod Size: diameter2-120mm Length<2500mm 6) Straightened rods after drawn diameter0.8mm-3.2mm
TZM and Mola rod chemical Composition is:
TZM rod: Mo + 0.40-0.55%Ti + 0.06-0.12%Zr + 0.01-0.04% C
MoLa rod:Generally: La2O3:0.4%-0.7%

Content of molybdenum	Content of all other elements	Content of each element
≥99.95%	≤0.05%	/

Surface Finish
Black Surface is "as swaged or "as drawn"; Retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control.

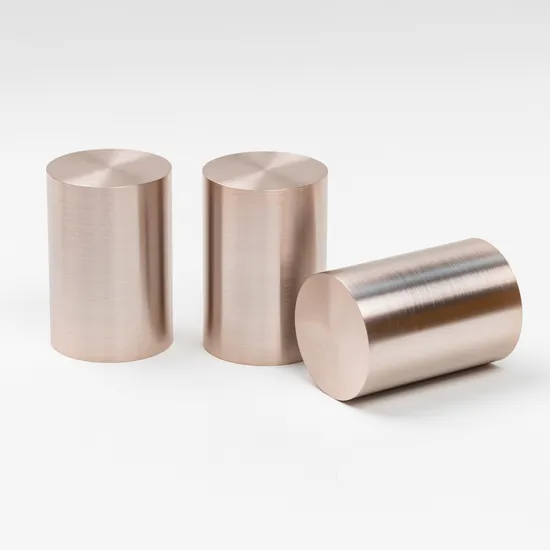

Molybdenum copper Alloy
MoCu alloy forged rods Molybdenum contents 50%-85%
Mo-Cu composites has lower density, its thermal expansion coefficient and thermal conductivity can be adjusted to match many different materials.
MoCu alloy physical Properties of Major Products

Material	Wt% Molybdenum Content	Wt% Copper Content	g/ Density at 20ºC	W/M.K Thermal conductivity at 25ºC	(/k) Coefficient of thermal expansion at 20ºC
Mo85Cu15	85	Balance	10	160-180	6.8
Mo80Cu20	80	Balance	9.9	170-190	7.7
Mo70Cu30	70	Balance	9.8	180-200	9.1
Mo60Cu40	60	Balance	9.66	210-250	10.3
Mo50Cu50	50	Balance	9.54	230-270	11.5

Tungsten Alloy Tungsten copper alloy WCu - Content WCu (W50 W55 W60 W65 W70Cu, W75Cu, W80Cu, W85Cu, W90Cu, etc) Product standard: GB8320-87
Density: 11.85g/cm3-16.75g/cm3
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: diameter(3-100mm)*L<500mm
WCu Chemical composition

Material	WCu% Tungsten Content	Hardness HB	g/ Density at 20ºC	W/M.K Thermal conductivity at 25ºC	(10-6/k) Coefficient of thermal expansion at 20ºC
W90Cu10	90	260	17.0	180-190	6.5
W85Cu15	85	240	16.4	190-200	7.0
W80Cu20	80	220	15.6	200-210	8.3
W75Cu25	75	195	14.9	220-230	9.0
W50Cu50	50	125	12.2	310-340	12.5

Tungsten High Heavy Alloy
W-Ni-Fe W-Ni-Cu ASTM B777-07 rods/sheet/plates/tubes
Material:W90-97NiFe(Magnetic)&W90-97NiCu(Nonmagnetic)
Density:16.8-18.8g/cm3
Rods Size:dia(1.5 -200) x Length<500mm Tungsten Alloy component: W(88-98)% with the addition of nickel and copper or nickel and iron, etcTungsten Alloy applications: For making rotors of aircraft wings, shileding materias for radioactive isotope (Cobalt 60), and formaterials of armor piercing bullets and mould, etc.
tungsten rods bar in hot sale
1. Pure tungsten rod specification:
Tungsten purity: W>=99.95%
Density: >=19.2g/cm3
Dia: 1.0-120mm
2. Tungsten rods surface finish:
Black:Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is centerless ground to remove all coating and to achieve precise diameter control.
3. Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Forged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1

Pure tungsten rod/electrode for argon arc welding
We have many kinds of tungsten electrode type:
Pure tungsten electrodes-WP(marked green color)
Thoriated tungsten electrodes- WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Lanthanum tungsten electrodes-WL10(marked black color)
WL15(marked gold color)
WL20(marked sky blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)

---
