Compact Mini Excavator 09 for Efficient Garden and Yard Tasks

Product Description

Product Description

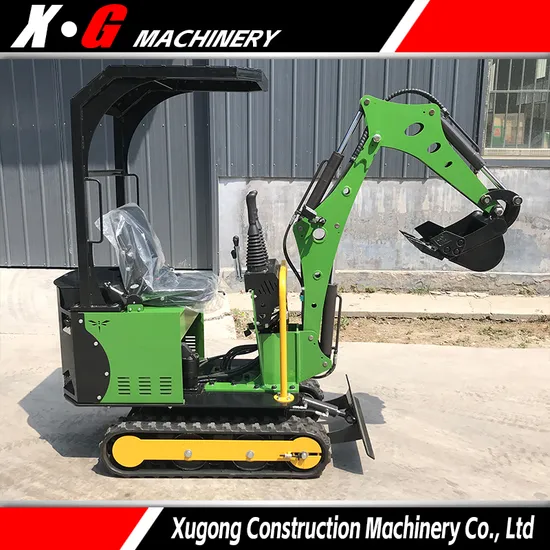

Introducing the pinnacle of innovation in small-scale construction machinery - the Compact Mini Excavator 09 by Jining Xugong Construction Machinery Co., Ltd. This exceptional piece of equipment features a robust, resilient track design, engineered to conquer a diverse array of challenging work environments. Whether you're at a bustling construction site, tending to fertile farmland, or crafting serene garden landscapes, this mini excavator delivers unparalleled performance and versatility.
Beneath its sleek and compact exterior lies formidable digging prowess. The state-of-the-art control system empowers you with precision handling, enabling seamless execution of intricate tasks such as digging, leveling, and loading with unparalleled ease. Additionally, its whisper-quiet operation and eco-friendly low emissions ensure that urban construction projects can move forward without compromising environmental standards.
Effortless to operate, this excavator is equipped with an advanced control system that grants you mastery over excavation depth and intensity. Moreover, the efficient powertrain boosts productivity, ensuring swift completion of tasks while significantly reducing both time and labor expenses.
Product Introduction
Product Parameters

XG-08 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.025
Engine model	Science Popularization/Changchai 192
Working weight	KG	636
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1300
Maximum excavation height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	780
Overall height	mm	1390
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-09 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.025
Engine model	Science Popularization/Changchai 192
Working weight	KG	636
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Arm side swing	°	Left 50, right 40
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1300
Maximum excavation height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	780
Overall height	mm	1420
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-10 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	758
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	2450
Maximum excavation depth	mm	1410
Maximum excavation height	mm	2420
Maximum unloading height	mm	1650
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	120
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	880
Overall height	mm	1460-2000
Total length	mm	2430
Minimum ground clearance	mm	80
Track grounding length	mm	1140
track width	mm	150

XG-12 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	900
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	16
Rotation speed	Rpm	13
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	20
Scope of work
Maximum excavation distance	mm	3077
Maximum excavation depth	mm	1787
Maximum excavation height	mm	2550
Maximum unloading height	mm	1687
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer shovel	mm	132
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	850
Overall height	mm	1535-2200
Total length	mm	2876
Minimum ground clearance	mm	132
Track grounding length	mm	900
track width	mm	150

XG-15 Small Excavator Parameters
Performance parameter
	Unit	Parameter
Rated power	KW	8.6
Bucket capacity	m³	0.03
Engine model	Science Popularization/Changchai 192
Working weight	KG	1580
Maximum digging power	KN	7.5
Pump type	Single gear pump
Set work pressure	Mpa	14
Rotation speed	Rpm	12
Walking speed	Km/h	2.2
Climbing ability	°	30
Ground voltage ratio	Kpa	19
Scope of work
Maximum excavation distance	mm	3700
Maximum excavation depth	mm	1300
Maximum excavation height	mm	3300
Maximum unloading height	mm	1980
Minimum turning radius	mm	1660
Maximum ground clearance of bulldozer shovel	mm	495
Maximum support depth of bulldozer shovel	mm	200
External dimensions
Overall width	mm	980
Overall height	mm	2120
Total length	mm	3685
Minimum ground clearance	mm	200
Track grounding length	mm	1410
track width	mm	230

Scene shooting
Other
FAQ
At Jining Xugong Construction Machinery Co., Ltd., we take immense pride in delivering a diverse array of construction machinery, meticulously engineered to meet your precise requirements. Our products are designed to be durable, efficient, and reliable, enabling you to tackle even the most demanding projects with utmost ease.
Key Features: For your convenience, we offer a variety of payment options including Western Union, PayPal, letter of credit, and wire transfer. Our flexible trade methods, with FOB as the standard option, are customizable to fulfill your specific needs. Primary shipping is conducted via sea transportation, with dedicated customer service available to address any special shipping requirements. Benefits: Enjoy the ease of multiple payment options for seamless transactions. Benefit from adaptable trade methods tailored to your business preferences. Leverage our efficient shipping solutions for timely deliveries. Opt for Jining Xugong Construction Machinery Co., Ltd. for exceptional-quality products and unparalleled service in the construction machinery sector.

---
