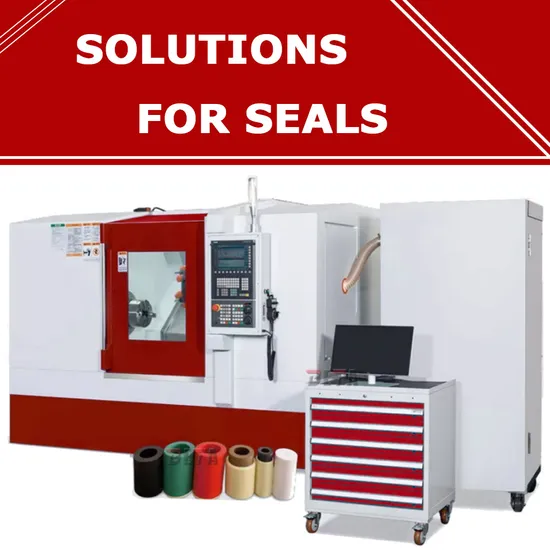

Seal Solution 500mm Diameter Hydraulic Oil Seal Ring Making CNC Lathe Machine

US$65,000.00
1-4 Sets
US$60,000.00
5+ Sets

Basic Info.

Model NO.
CS500
Application
Seal
Process Usage
Seal Making CNC Machine
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Seal Solution 500mm Diameter Hydraulic Oil Seal Ri
Max. Seal Diameter
500mm
Delivery Time
2 Months
Color
Red White
Raw Material
Supply
Turret
8 Station Turret Vdi
Chuck
Manual Chuck
Voltage
380V
OEM
Available
MOQ
1 Set
Transport Package
Wooden Case
Specification
500mm diameter seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg

Product Description


Specification CS500
Max. Turning diameter over bed 520 mm
Max. Seal Turning diameter 500 mm
Spindle A2-5
Spindle bore diameter 56 mm
Max. spindle speed 5000 r/min
Chuck size 6 inch chuck
X-axis rapid move speed 24 m/min
Z-axis rapid move speed 24 m/min
X-axis travel 260 mm
Z-axis travel 450 mm
X-axis motor (with brake) Siemens 2.29 kw / 11Nm
Z-axis motor Siemens 2.29 kw / 11Nm
X-axis guide SKF 30
Z-axis guide SKF 35
Turret type Horizontal 8 station VDI turret
X/Z axis ball leadscrew Taiwan HIWIN SKF
Leadscrew bearing Germany FAG
Spindle bearing NSK
Electrical components Schneider
Main motor power 7.5 kw
CNC Controller Siemens 828D controller
Motor power of suction machine 5.5 kw
Machine weight 2800 kg
Overall size of CNC lathe 2750*1780*1920 mm
Overall size of Suction machine 900*900*2000 mm
Repeated positioning accuracy X-axis/Z-axis 0.004mm/0.004mm
