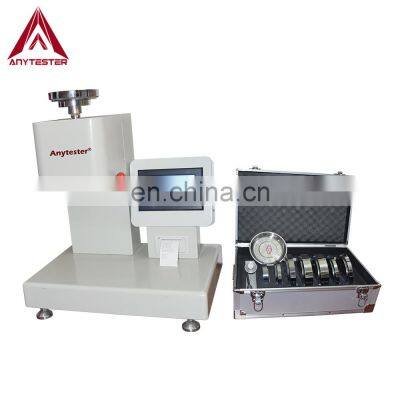

AT430C Melt Flow Index tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Standard
ASTM D1238
| ISO 1133-1
|
JB/T 5456
| GB/T 3682-2000
|
Note: For more standards, please contact us!
|
|
Specification
Model
| AT430C
|
Temperature range
| 120℃~450℃
|
Temperature error
| ≤±0.2℃
|
Temperature resolution
| 0.1℃
|
Temperature recovery time
| ≤4 min
|
Display mode
| Touch screen operation
|
Test method
| MFR
|
Timing accuracy
| 0.1s
|
Cutting mode
| Manual & automatic
|
Standard die
| Tungsten carbide, Φ2.095±0.005mm
|
Height of standard die
| 8.000±0.020mm
|
Inner diameter of feed cylinder
| Φ9.550±0.025mm
|
Diameter of piston
| Φ9.475±0.015mm
|
Length of piston head
| 6.350±0.100mm
|
Power
| AC220V, 50Hz, 450w
|
Details & Features
★ Chinese/English operate interface; ★ Simple structure, easy to operate, easy to maintain;
★ Color touch screen control;
★ Professional software to control temperature automatically, automatically cutting material, real time display test curve, mini-printer to printout test data;
★ Can automatically calculate the melt flow rate (MFR) after inputting the mass value;
★ Can store recent 40 groups of test data.
