Product Description
Product Description

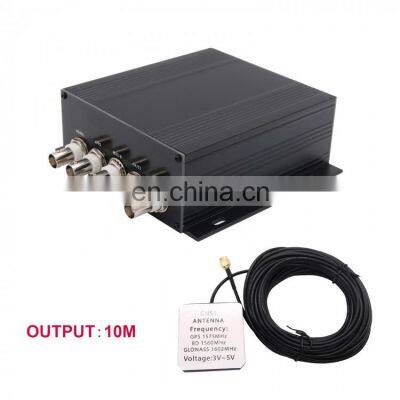

10MHz Output NTP Time Server GPSDO GPS Disciplined Oscillator Clock For GPS Beidou GLONASS GALILEOProduct Description Features:- Support for GPS, Beidou, GLONASS, GALILEO & QZSS- 1PPS synchronization accuracy up to 15ns (1σ)- Be punctual when the satellite reference source is lost- Antenna open-circuit and short-circuit detection- Client visit traffic up to 1000 times/s- LAN synchronous timing accuracy 0.5-2ms- NTP v2 (RFC 1119), v3 (RFC 1305) , v4 (RFC 5905)- SNTP v3 (RFC 1769), v4 (RFC 2030)- Support MD5 information verification- Support Server & Broadcast working modesRich Interfaces:- 2-Way 1PPS+TOD Output- 1-Way 1PPM Output- 1-Way 1PPH Output- 1-Way IRIG-B Output- 1-Way NTP Network Timing Interface- 1-Way 1PPS Output- 1-Way 10MHz OutputConfiguration Software:- Free software- Simple interface makes it easy to useChecking Status:- The PC software can query and control your device by monitoring the serial port or network TCP protocol, and the status of the device information is accessible at a glance.Receiver Parameters:- Support: GPS L1, Beidou B1, GLONASS L1, Galileo E1 & QZSS L1 - Horizontal Positioning Accuracy: <2.5 m CEP50 (autonomous)- Vertical Positioning Accuracy: <5 m CEP50 (autonomous)First Positioning Time:- Reacquisition: < 1s 50%- Warm Boot: < 1s 50%- Warm Start: < 33s 50%- Cold Start: < 35s 50%Sensitivity:- Tracking: - 165 dBm- Acquisition: -148 dBmDynamic:- Acceleration: 4g- Speed: 515m/sNTP Parameters:- Interface: 10/100 Base-Tx- Interface Standard: Compliance with IEEE-802.3u Standard- Interface Rate: 10/100M Adaptive- Interface Connector: RJ-45- NTP LAN Timing Accuracy: 0.5-2ms- Support Protocols: NTPv2, NTPv3, NTPv4 and SNTP- MD5 Information Verification: Yes1PPS, 1PPM & 1PPH:- Interface Level: LVTTL- Pulse Width: 100ms- Rising Edge: ≤15ns- Jitter: ≤500ps- Timing Accuracy: ≤15ns(1σ)- 24-hour Accuracy of Punctuality (Test after disciplining OCXO 24 hours): ≤50μs (OCXO); ≤5μs (DOCXO)IRIG-B:- Interface Level: LVTTL- Signal Output Format: IRIG-B 000, supporting IEEE1344- Punctual Edge: Rising edge- Timing Accuracy: ≤15ns(1σ)TOD:- Interface Level: LVTTL- Message Format: ZDA (Can be customized)- Baud Rate: 9600- Accuracy: The message frame header is aligned with the leading edge of the second pulse (1PPS) with a deviation of less than 1μs10MHz:- Waveform: Sine Wave- Amplitude: >7dBm- Load: 50Ω- Harmonic Suppression: -30dBc- Clutter Suppression: -80dBc- Frequency Accuracy: Better than 1.0E-12 (After taming 24 hours)- Short-term Stability (T= 1S): Better than 1.0E-12 (Can be customized)- Phase Noise: -110dBc/Hz@10Hz; -140dBc/Hz@100Hz; -150dBc/Hz@1KHz; -155dBc/Hz@10KHz (Can be customized)Electrical Parameters:- Working Voltage: DC 12V- Operating Current: Power-on < 500mA; Steady State < 200mA- GNSS Antenna Voltage: 5V- Network Port Specifications: RJ45, 10/100Mbps, Cross-connection adaptive- Encapsulation Way: RJ45- Reliability Level: 2KV Electromagnetic Isolation- Working Temperature: -40 to 85℃- Storage Temperature: -45 to 105℃- Working Humidity: 5% to 95% RH (No condensation)- Storage Humidity: 5% to 95% RH (No condensation)Package Included:- 1 x NTP Server GPSDO GPS Clock w/ 10MHz Output Detail photo FAQ FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, the order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have an alibaba paying link. Q5. After paid, what info of the supplier provided?A: Tracking number. Q6: Do you offer a guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take responsibility for Man-made damage or improper operation. Delivery damage will be negotiated. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel has the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city airport.4. By Sea: Delivery from the Shenzhen seaport . Company Information Company informationTZT has been specializing in Business & Industry, Hobbies & Toys,CNC Products and Health care supplies for over 5 years. We committed to enhancing customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service. Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
