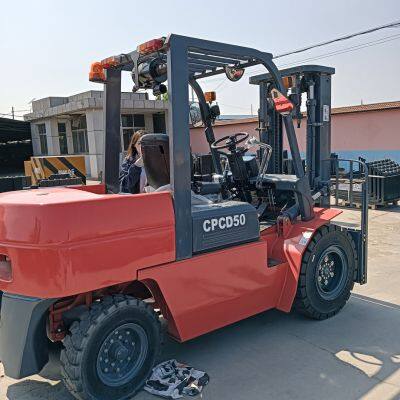

CPCD50 5ton automatic forklift only 15999usd per unit based xinchai engine

Product Details

Product Description

Product Description
Product specificationsModel CPCD40CPCD50-LCPCD60

Rated lifting load	kg	4000	5000	6000
Load center distance	mm	500	500	600
Lift height	mm	3000	3000	3000
Overall length	mm	2930	3260	2693
Overall Width	mm	1290	1460	2010
Overhead guard height	mm	2180	2340	2090
Wheelbase	mm	1900	2100	2250
Minimum ground clearance	mm	140	150	200
Mast tilt angle (front/rear)	%	6°/12°
Front Tire		250-15-16PR	300-15-18PR	8.25-15-14PR
Rear Tire		7.00-12-12PR	7.00-12-12PR	8.25-15-14PR
Minimum turning radius (outer side)	mm	2710	2910	2420
Max.Gradeability	%	20	20	30
Fork size	mm	1070×150×50	1070×150×50	1220×150×60
Forklift weight	kg	4950	5500	8500
Engine model		XinchaiC490BPG	XinchaiC495BPG	XichaiCa6110125G2
Optionl Engine model		ISUZU C240	ISUZU 4JG2	ISUZU 6BG1

Optional configurationStandard version configuration：2 stage mast / Maximum lifting height 3000 mm / Xinchai 490BPG engine / no side shifter / Pneumatic tire /
Optional configuration : Side shifter / Fork Positioner / 3 stage mast / Maximum lifting height from 4500 mm to 6000 mm / Solid tires / Double wheels / Closed Cabin / Isuzu engine / Yanma engine / Mitsubishi / Euro 5 Engine / Epa engine

---
