Agriculture Machinery Grain Drying Machine for Parboiled Rice Garri Ginger and Instant Noodle

Product Description

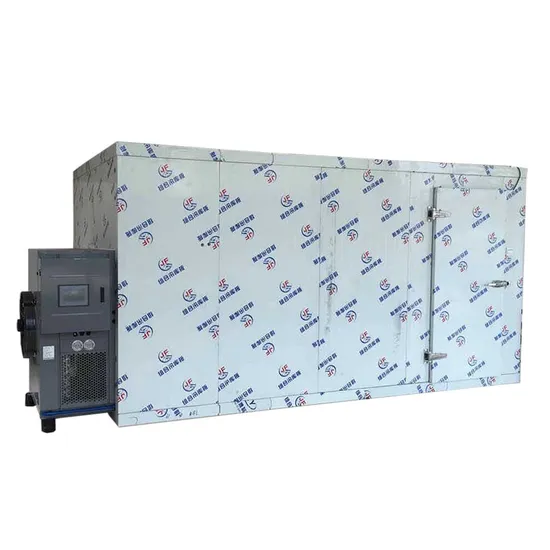

Product Description KINKAI Heat pump drying machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried.
Wide application
Dry fruits like apple,mango,pineapple,plum,apricot,berry and ect.
Dry vegetable like radish,lettuce,carrots,tomato,cassava and ect.
Dry meat like fish,shrimp,sausage,beef,duck and ect.
Others it can dry noodles,wood,stick incense,herbs,flowers and ect.
Working Principle
KINKAI heat pump dryer operates according to a basic reverse Carnot cycle.
Features
• High temperature heat pump drying dehumidifying drying room.
1. Drying process completely meet the requirements of food hygiene.
2. Cleaning and hygiene in the good condition, the finished colour and lustre is bright.
3. Automatic control, reduce the labor and the labor intensity.
4. During drying, there is no water/gas/solids generating, the green environmental protection; Good and comfortable working environment .
5. Long service life, low operating cost, good economy.
6. Temperature and humidity is automatic control; Small fluctuations in the temperature and humidity in drying process, the drying quality is stable and reliable.

Technical Parameters
Model: JK03RD, JK06RD, JK12RD
Power Supply: 220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp: 75C
Working Temp: -10~45C
Functions: Heating / Cooling / Dehumidify
Dryer Type: (Heat Pump)Batch System
Single Type

MODEL	UNIT	JK03RD	JK06RD	JK12RD
POWER SUPPLY	V/PH/HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ
		220V/1PH,50/60HZ
RATED CURRENT	A	9.6A(380V),22A(220V)	17.0	30.0
HEATING CAPACITY	KW	10.5	21.0	42.0
COOLING CAPACITY	KW	7.8	18.0	32.0
DEHUMIDIFY	L/H	12.0	25.0	50.0
TEMPERATURE	C	10-75	10-75	10-75
NOISE	dB(A)	75	75	75
ELECTRIC HEATER	KW	3.0	6.0	12.0
DRYER DIMENSION	MM	1675X860X1280	1760X1060X1280	2120X1360X1590
WEIGHT	KG	180	285	480

Double Type

MODEL	UNIT	JK03RD	JK06RD	JK12RD
POWER SUPPLY	V/PH/HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ	380V/3PH,50/60HZ
		220V/1PH,50/60HZ
RATED CURRENT	A	19.2A(380V),44A(220V)	34.0	60.0
HEATING CAPACITY	KW	21.0	42.0	84.0
COOLING CAPACITY	KW	15.6	36.0	64.0
DEHUMIDIFY	L/H	24.0	50.0	100.0
TEMPERATURE	C	10-75	10-75	10-75
NOISE	dB(A)	75	75	75
ELECTRIC HEATER	KW	3.0x2	6.0x2	12.0x2
DRYER DIMENSION	MM	1675X860X1280	1760X1060X1280	2120X1360X1590
WEIGHT	KG	180x2	285x2	480x2

Buying Guide

Model	Dryer Qty	Product capacity	Chamber Size	Power Consumption
JK03RD	Single	300kg/ batch	4000x2000x2200mm	4.8kw
	Double	1300kg/ batch	7000x2000x2200mm	9.6kw
JK06RD	Single	600kg/ batch	6000x2800x2200mm	8.5kw
	Double	1500kg/ bacth	10000x2800x2200mm	17kw
JK12RD	Single	1000kg/ batch	6000x3000x2200mm	15kw
	Double	3500kg/ batch	10000x3000x2200mm	30kw

Warm prompt: We can make any drying chamber sizes as your required.
Packaging & Shipping
Our Services
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
FAQ
1. Does the KINKAI drying machine running by Gas or electricity or Diesel
Answer: Electricity only
2. Could I put my LOGO on the Dryers?
Answer: Yes,we can provide OEM service.
3. What is the material of drying machine cover ?
Answer: we can do SS304# or coat steel, sure,difference material with different price
4. What should I do if I am interested in your drying machine?
Answer: Thank you so much for your attention. Please don't hesitate to contact us by mail or by phone, telling us which one model, how many sets, drying capacity, and special requirements etc.
5. What are your main products of your company?
Answer: Heat pump dryers, heat pump(including air to water heat pumps, water to water heat pumps).
6. Could you give me your catalogue?
Answer: Yes, you can download it on website or send us email,we will send you asap.
If you are interested in our heat pump dryer, please contact us for more information, such as catalogue, video,etc.

---
