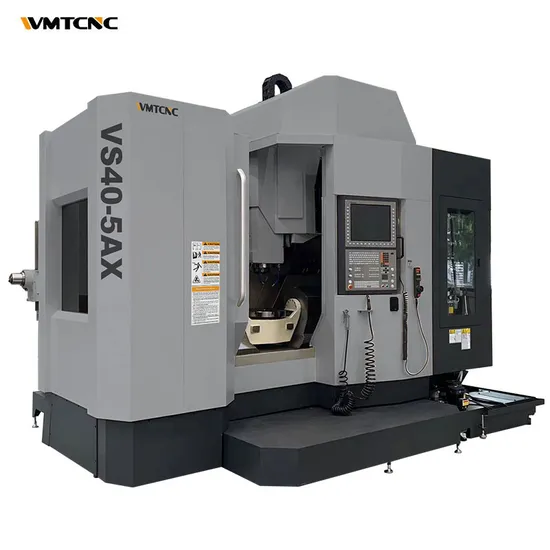

Mineral casting VS40-5AX high precision vmc machine 5 axis cnc vertical machining center

Product Description

Product Description
VS40-5AX high precision 5 axis cnc vertical machining center main features:
1. Adopting gantry frame structure and symmetrical structure design, which effectively avoids the problem of overshoot in response when the load weight is small and delayed when the load weight is large.
2. New mineral casting material is used for all the basic parts of the machine, which has excellent vibration absorption and thermal stability.
3. Machine tool moving parts lightweight design, good dynamic performance.
4. The Z-axis is designed with fixed overhang, which improves the overall processing rigidity.
5. Adopt torque motor direct drive, full closed-loop control, fast response and high precision.

specification		VS40-5AX
Processing range	X axis travel	mm	550
	Y axis travel	mm	600
	Z axis travel	mm	400
	Distance from spindle nose to worktable surface	mm	150-550
	B axis	°	±110
	C axis	°	Continuous 360
Worktable	Worktable size	mm	Φ400
	Max. swing dia. of workpiece	mm	600
	Max. loading of worktable	kg	200
	T-slot width	mm	14
	Center hole size	mm	Φ50H7
	B-axis locking torque	N·m	2×850
	C-axis locking torque	N·m	850
Feed	X/Y/Z rapid feed speed	m/min	36/36/32
	B/C axis spindle	rpm	80/120
Spindle	Spindle taper		HSK-A63
	Max. working speed	r/min	15000
	Rated power	kW	26.4
	Rated torque	N·m	84
Position	X/Y/Z positioning accuracy	mm	0.006
	X/Y/Z re-positioning accuracy	mm	0.004
	B/C axis positioning accuracy	″	10
	B/C axis re-positioning accuracy	″	4
Tool	Type		Disc type
	Tool magazine capacity		24
	Max. tool size	mm	Φ78/Φ120/300
	(Full tool diameter / empty adjacent tool diameter / length)
	Max. tool weight	kg	8

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
