RDS2 Series Normal Power to Reserved Power Changeover Switch

Product Description

RDS2 Series Normal Power to Reserved Power Changeover Switch
Radin Electric provides ATS design, engineering, and full after sales support for a wide range of automatic transfer switch applications. We offer onsite electrical audits to assist in determining the correct product and installation to meet your exact needs and requirements.

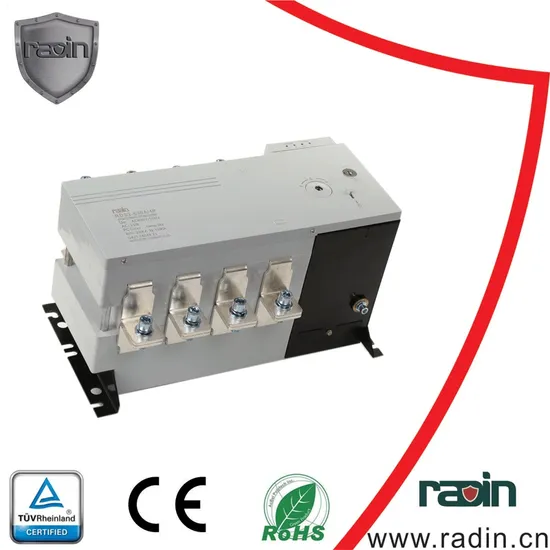

(RDS2 Automatic Transfer Switch 100AMPS 4 Poles with Built-in controller)
RDS2 Series
PC class automatic transfer switch
Adopt two in one out design, easy to wiring;
With "0" position technology, can be forced to "0" position under emergency situation to match the fire-linkage requirement; Optional multifunction Intelligent controller with Programmable high/low voltage protection, high/low frequency protection, adjustable transfer delay time, adjustable center delay time, build-in engine exerciser, fault transfer to "0" function is optional; Separate LCD display is optional, with RS485 communication function
Optional functions: Center delay, fault to "0" position, engine exerciser etc.
Frame current: 100, 160, 250, 630, 1600A. 2000A, 3200A.

Type	B type controller	E type controller	G type controller
Motor control voltage	AC220V/50Hz
Aux. Power	/	DC 24V	GA Type	GB Type	GC Type
			1, DC 12V 2, DC 24V	Passive Output	AC 220V
Voltage Measuring Range	AC 40 to 300V
Power Loss	less or equal 10W
Working Position	(Normal power ON, Reserve power ON, OFF) Three working position		Three (I power ON, II power ON, I/II power OFF)
Operating Mode	Auto, Manual	Auto, Manual, Remote	Auto, Manual
Display Mode	LED Indicator	LCD Display	LED Indicator
Runing Status LED Indicators	I/II POWER; I/II ON
Voltage Display	No	Yes	No
Transfer Mode	Auto Transfer and Recovery	Auto Transfer auto recovery / Auto transfer no recovery	Auto Transfer and Recovery
Source Priority	Default no source priority	Settable I/II/No Priority	Default no source priority
Under voltage transfer value	NO	+/- 20% Adjustable	NO
Over voltage transfer value	NO	+/- 20% Adjustable	NO
Transfer Delay Function	NO	0~180s Adjustable	NO
Recovery Delay Function	NO	0~180s Adjustable	NO
Phase missing detect	Single phase (A Phase)	Three phase (A,B,C Phase)	Single phase (A Phase)
Generator control	Yes (one set DC2A relay contact)
Fire-linkage control	Yes (passive contact input, with one set NO passive feedback signal)
RS485 function	NO	Yes	NO
Frequency Protection	NO	+/-20% adjust	NO
Engine Exerciser	NO	Yes	NO

ATS Features Comparing, RDS2 -- Outdated type ATS
	RDS2	Outdated type ATS
Certificates	CE, RoHS	/
Flame-retardant Cover	Yes	No
Working voltage (L-N)	Wide(150VAC-300VAC)	Ordinary
Controller	Intelligent and settable	Simple, fixed function
I Power LED Indicator	Yes	No
II Power LED Indicator	Yes	No
I Power ON LED Indicator	Yes	No
II Power ON LED Indicator	Yes	No
Over/Under Voltage Protection	Yes	No
Over/Under Frequency Protection	Yes	No
Transfer Time Delay	Settable	Fixed
Generator Start/Stop Time Delay	Settable	No
Engine Exciser(weekly, monthly etc.)	Yes	No
Phase Immbalance Protection	Yes (custom made)	No
Size	Compact	Larger
Copper Bar	2 Input 1 Output	2 Input 2 Output(some)
Operation Handle	Iron(solid)	Plastic(crispy)
Fuse	Yes	No
Outlook	Distinguished & Elegant	Common
Motor Brand	CNDF	Wuxi, inferior quality
Before Factory Testing	Auto Testing Line/Manual	Manual check

Dlivery Terms
Sea Shipment & Express & Air express
Packaging
( Product Packaging, Product: RDS2)
About the Company
ATS Controller Operation Units
ATS and Controller Operation Units
Products Test Equipment
ATS Switch Test Line
(Our Test Lab)
RADIN parts are TUV, CB, CE, CCC certified, and the factory is ISO9001:2015 qualified.
FAQ:
1. What's the warranty term?
24 Monthes.
2.How long does it take to deliver my goods?
Normally, samples can be delivered in 2 days. Customer designed sampleswill be delivered in 3-7 days.
3. Do you offer sample?
Yes, we offer sample order for customer to test the goods.
4. What kinds of payment terms do you accept?
We offer kinds of payment ways foe customer to chose from. T/T,L/C,Western union etc.
5. What if there's quality peoblem?
We offer replacement for the goods as soon as there is a quality problem with the goods, and the fright is on our account to cut down the customer's loss to the lowest.
We are sure any of your questions will get our prompt reply, just leave the message!

---
