RS2800-18d Cutting Granite Stone Block Cutter Machine in Jaipur

Product Description

Product Description

/Product name	/Unit	RQC-2200-4D PRO	RQC-2500-4D PRO	RQC-2800-4D PRO
/Blade diameter	mm	Φ2200	Φ2500	Φ2800
/Maximum lifting stroke	mm	1400	1400	1400
/ Maximum machining length	m	3800	3500	3200
/ Maximum processing width	ne	2200	2200	2200
/Saw blade number	pcs	3-18	6-18	9-18
/Wate consumption	m3/h	15	15	15
/ Main motor power	Kw	45	55	65
/Total power	Kw	56	66	76
/Weight	kg	16000	16500	17000
/Overall dimensions(LxWxH)	m	8.0x4.4x3.7	8.0x4.4x3.7	8.0x4.4x3.7

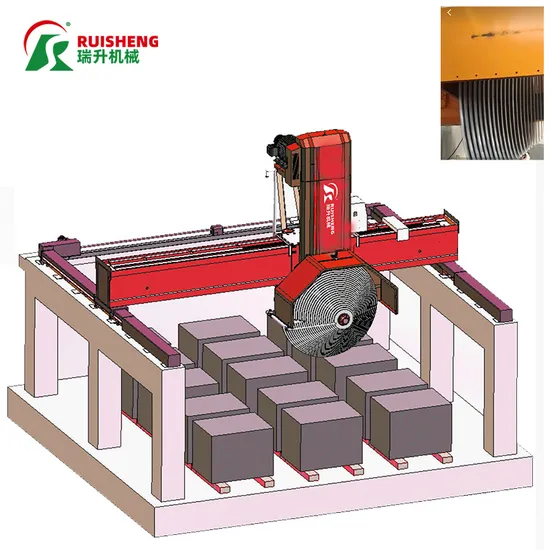

RS-2200/2500/2800 uses a PLC system and Human-machine interface, combined with an Ultra-high precision rotary encoder to slice, uses an inverter to control left-right feeding, and adjusts the speed according to the stone material. It uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, and automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktables can be selected if the customer requires it.

---
