0.76mm Grey Band PVB Interlayer Film for Automotive Windshield Glass

Product Description

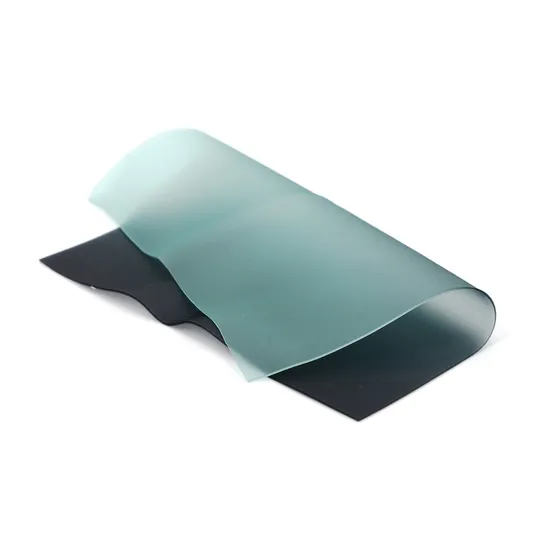

0.76mm Grey band PVB interlayer film for automotive windscreen
Product Description
Jiahua PVB film is a macromolecule material which produced by extrusion using PVB resin, plasticizer and additives. Saflayer pvb film is not only can shield out the UV, heat and sound, but also famous for its high visible transmittance, super anti-penetration. The major application of PVB film is laminated safety glass used on automotive windshields, architectural glass as well as the bullet proof glass.
Product Parameters

Thickness		0.76mm
Appearance	Surface	Smooth surface without Nick,Crease,Bond; The color band should be evenly distributed and the width of transitional region is equalized
	Band Color	Clear, Blue,Green ,Gray & others
	Crystallite and watermarks	Crystallite Diameter exceed 2.0mm is not allowed. No visible watermarks.
	Visible defects (impurities, bubbles, oil, drop etc.)	Defects Diameter exceed 0.5mm and allowed maximum 6 defects per 200m
		Defects Diameter exceed 0.5mm to tag on PVB film; Diameter less than 0.5mm in the Intensive defects area* must tag on one defect. The defects marks and places should be showed in the packing list.
	Thickness tolerance(mm)	Plus or Minus 0.04mm
Thickness and size	Uniformity ratio	At any two points from 25mm distance either horizontally or vertically of the thickness tolerance is less than 15μm; (or 50mm - less than 25μm; or 100mm - less than 50μm)
	Length (m)	Normal length
	Width (mm)	Normal width
Roughness Rz		15 -70
Moisture content (%)		0.35 - 0.55
Heat shrinkage rate ( 60ºC/15min) (%)		8.0 Max
Pummel value		7 Max
Light transmittance (%)		85 Min
Haze (%)		0.2 - 0.4
UV Screening, up to 380nm (%)		99
Tensile strength (MPa )		20.0 Min
Tensile elongation (% )		200 Min
Yellowness index (%)		10 Max
*Intensive defects area: Within the 300mm diameter circle, the defect numbers is over 10 and its interval less than 5 mm.

Quality Control
Company Profile
Qingdao Haocheng Industrial Co., ltd. is a professional manufacturer and engaged in the research & production, sale and service of PVB resin, PVB film interlayer, PVB plasticizer (3GO) and Float laminated glass sheets. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Going with company development, we are looking for new team of partner with strong integrity to join us to enjoy our business together.
Our history:
Main Products
Packaging & Shipping Packing: The pvb film is rolled by insulated with PE film and then wrapping film, cased into an aluminum foil bag by vacuum sealed, and then packing into plywood box or fiber can. (remark: The width is less than 1250mm, which can be packing into fiber can)
Transportation: There should no direct sunlight, drench, and violent shaking during the transportation.
Storage: Be stocked in cleanhere should be quality certificate, packing list in the package. The marks of moisture proof, shock proof and sunlight proof should be labeled.
Automobile grade

Thickness	Length	Clear width	Shade width
0.76mm	200m	600-1600mm	0-230mm

Certifications
After Sales Service

---
