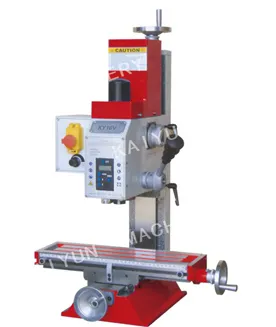

Portable High Quality Precision Manual Turret Benchtop Small Mini Drilling Milling Machine (KY16V)

Product Description

Features
1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.

Specification
MODEL	KY16V
Drilling capacity	16mm
Face milling capacity	63mm
End milling capacity	20mm
Spindle taper	MT2
Sleeve travel	50mm
Low speed stage	50-1125 rpm
High speed stage	100-2250 rpm
Head rotation	±90°
Table size	400x120mm
X-axis travel	220mm
Y-axis travel	160mm
Z-axis travel	210mm
T-slot	10mm
Load of table	55 kg
Motor	600W
Packing size	500x450x760mm
Net weight	60kg
Standard Accessories
Speed display	1 set
Depth ruler	1 set
Drill chuck 3-16mm	1 set
Arbor MT2/B16, M10	1 set
Optional Accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER25/6pcs collet chuck (4-16mm)
2-way angle vise-50mm
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10*11.7mm
X-axis Power feed

Packing & Delivery
Warehouse to film
We are mainly supplier of machinery in China, specialized in manufactureing metal bench lathe, gap-bed lathe, drilling & milling machine, wood lathes, metal band saws and other sheet metal machine etc. Advanced production equipment enable us to turn out high quality products. Our fine quality products, which are certified by CE. Our innovative R&D teams will try their best to fulfill any requirements of order put forward by different customers. We also would like to act as OEM/ODM for our customers. If you are interested in our products or have special requirements, pls feel free to contact us. Then we, Sale Dept will give you a satisfying reply ASAP.

---
