High Quality 1.6MPa DIN ANSI JIS BS PVC Pneumatic Ball Valve UPVC Female Thread True Union Ball Valve Plastic Non Actuator Mounting Pad Ball Valve

Product Description

Tianjin Runke Plastic Tech Co., Ltd. has 10 sets of professional and large-scale injection molding equipment, more than 30 sets of professional processing equipment, and 4 sets of professional pressure testing equipment.
Each sealing surface is 100% machined, and each sealing link is 100% pressure tested one by one.
The company does not use recycled plastics or recycled rubber to ensure that the products meet the mechanical performance, sealing performance and service life.
The company mainly produces four series of more than 50 kinds of PVC-U, PVC-C, FR-PP, PP-R butterfly valves, PVC-U ball valves, PVC-U check valves, PVC-U bottom valves, with an annual production of 600,000 sets of valves.
PVC-U butterfly valve, PVC-U check valve, PVC-U ball valve comply with European DIN standard, American standard, Japanese standard. We can produce large size valves, product size ranges from DN15mm to DN400mm
PVC Swing Check Valve according to DIN,ANSI,JIS Standard DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10.
PVC 2 Pieces Compact Ball Valve according to JIS Standard DN50-DN100 ( 2" ~ 4" ) Working Pressure PN10;
PVC Wafer Check Valve according to DIN ANSI JIS Standard DN150-DN300 ( 6" ~ 12" ) Working Pressure PN10;
PVC Foot Valve according to DIN Standard with Specification DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10;
PVC True Union Ball Valve DIN, ANSI, JIS Standard with BSPT & NPT Threaded DN15-DN100 ( ½"~4" ) Working Pressure PN16 & PN10;
PVC Pressure Pipe Fittings for Water Supply according to DIN Standard 8063 PN10;
Ball Valve
PVC Union Ball Valve
Pad Ball Valve
PVC Ball Valve
Mounting Pad Ball Valve
UPVC Ball Valve
Plastic Ball Valve
Plastic Valve
Female Ball Valve
Thread Ball Valve
Union Ball Valve
Actuator Ball Valve
Mounting Ball Valve
True Union Ball Valve
Pneumatic Actuator Ball Valve
Non Actuator Ball Valve
PVC Valve
Female Thread Ball Valve
PVC True Union Ball Valve
PVC-U True Union Ball Valve With Mounting Bracket & Coupling Bush
Hi-Quality

DIN ANSI BS JIS Standard Low Torque DN15 - DN100 ( 1/2"- 4" )
Full Flow

Working Pressure: DN15-DN50 ( 1/2" - 2" ) 240PSI PN1.6MPa; DN65-DN100 ( 2-1/2" - 4" ) 150PSI PN1.0MPa Socket x Socket, Female x Female
Acid-Proof, Alkali-Proof Actuator Mounting Hole with ISO5211 Standard Data Sheet of PVC-U Double Union Non Actuator Ball Valve

No.	Parts	Quantity	Material
1	Valve Body	1	PVC-U
1A	Body Bracket Base	1
			PVC-U
1B	Embedded Metal Nut	4
			S.S.304
1C	Body Base	1	PVC-U
2	Body Ball	1	PVC-U
3	O Ring	1	EPDM / FPM
4	Seal Carrier	1	PVC-U
4A	Carrier Adjusted Hole	2	PVC-U
5	Seat Seal	2	PTFE
6	Ball Seal Gasket	2	EPDM
			EPDM / FPM
7	O Ring	2
8	End Connector	2	PVC-U
			PVC-U
9	Union	2
		2
10	Stem O Ring		EPDM / FPM
11	Valve Stem	1
			PVC-M
12	Handle	1	ABS
12A	Handle	2	ABS
15	Mounting Bracket	1	PVC-M
16	Bolts	4	S.S.304
17	Coupling	1	PVC-M
18	Coupling Bush	1	S.S.304
19	Actuator	1

Size	Inch	1/2"	3/4"	1''	1 - 1/4"	1 - 1/2"	2"	2 - 1/2"	3"	4"
	DN	15	20	25	32	40	50	65	80	100
PN	MPa	1.6	1.6	1.6	1.6	1.6	1.6	1.0	1.0	1.0
L		120	129	147	164	182	209	247	288	340
							122		186	218
						103		156
					87
ØD		56		72
			64
Ød1		13	18	23	30	38	49	64	77	98
Socket End Ød2	DIN	20	25	32	40	50	63	75	90	110
	ANSI	21.34	26.67	33.4	42.16	48.26	60.28	73.03	88.9	114.3
	JIS	22	26	32	38	48	60	76	89	114
	BS	21.2	26.6	33.4	42.1	48.1	60.2	75.2	88.7	114.1
ØD3		31	36	46	55	64	79	94	110	134
H		66	68	75	82	97	107	137	154	182
LI		23	25	28	32	37	42	45	55	65
H2		29.5	33.5	39	47	54	65	82	98	114
H1		28	30	34	41	49	58.5	68	84	102
n-M*L3		4-M5*10				4-M6*13		4-M8*20
n-M*L4		4-M5*14				4-M6*16		4-M8*25
¨ B		9		( 9 ) / 11		11 / (14 )		14 / ( 17 22 )
H ¨ B		10		( 10 ) / 12		12 / ( 15 )		15 / ( 18 23 )
¨ C		54		52		72		98
H ¨ C		7				7.5		10
n-Øe4		4-Ø6				4-Ø7		4-Ø9
PCD ØD4		36				50		70
n-Øe5		4-Ø7				4-Ø9		4-Ø11
PCD ØD5		50				70		102

High Quality
PVC Ball Valve
UPVC Ball Valve
Plastic Ball Valve
Non Actuator Ball Valve
Female Thread Ball Valve
PVC True Union Ball Valve
UPVC True Union Ball Valve
PVC Double UnionBall Valve
DN15-DN100 (1/2"- 4")
Working Pressure: 16 kg/cm2 240PSI.
DIN, ANSI, JIS. BS Standard with BSPT or NPT Threaded
Connection: Socket x Socket, Female x Female
Feature:
Full-Flow, Excellence Appearance, High-Strength, Corrosion
Resistance, Long Life
DN15 - DN50 ( 1/2"- 2" ) 240PSI ( 1.6MPa ).
DN65 - DN100 ( 2-1/2" - 4" ) 150PSI ( 1.0MPa ).
Seat Seal & Ball Seal: PTFE ( Tefion ). Stem O-Ring: EPDM Rubber.
ABS Handle. Seat Tightness Can be Adjusted. Low Torque. Full Flow.

100% Factory Test.
PVC-U True Union Ball Valve DIN ANSI BS JIS Standard DN15 - DN100 ( 1/2"- 4" )
Working Pressure:
DN15-DN50 ( 1/2" - 2" ) 240PSI PN1.6MPa;
DN65-DN100 ( 2-1/2" - 4" ) 150PSI PN1.0MPa
Hi-Quality, Low Torque
Socket x Socket, Female x Female
Acid-Proof, Alkali-Proof

Lockable
100% Factory High and Low Pressure 2 Times Pressure Test
Full Flow
Ball Valve Sealing Performance and Torque Are Adjustable;
Ball Valve Can be Locked;
Corrosion Resistance;
Ball Seal in PTFE (Tefion);
PVC-U True Union Ball Valve DIN ANSI BS JIS Standard DN15 - DN100 ( 1/2"- 4" )
PVC-U True Union Base Ball Valve
Working Pressure:
DN15-DN50 ( 1/2" - 2" ) 240PSI PN1.6MPa;
DN65-DN100 ( 2-1/2" - 4" ) 150PSI PN1.0MPa
Hi-Quality, Low Torque
Socket x Socket, Female x Female
Acid-Proof, Alkali-Proof

Lockable
100% Factory High and Low Pressure 2 Times Pressure Test
Full Flow
Ball Valve Sealing Performance and Torque Are Adjustable;
Ball Valve Can be Locked;
Corrosion Resistance;
Ball Seal in PTFE (Tefion);

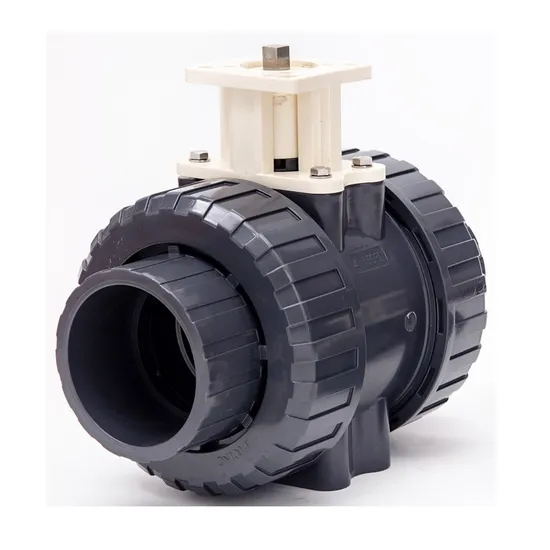

PVC-U True Union Ball Valve With Mounting Bracket & Coupling Bush

Hi-Quality
DIN ANSI BS JIS Standard
Low Torque DN15 - DN100 ( 1/2"- 4" )
Full Flow
Working Pressure:
DN15-DN50 ( 1/2" - 2" ) 240PSI PN1.6MPa;
DN65-DN100 ( 2-1/2" - 4" ) 150PSI PN1.0MPa
Socket x Socket, Female x Female
Acid-Proof, Alkali-Proof
Actuator Mounting Hole with ISO5211 Standard
Ball Valve Sealing Performance and Torque Are Adjustable;
Ball Seal in PTFE (Tefion)
Socket x Socket
Female x Female
Single Acting Pneumatic Actuator PVC-U Ball Valve DIN ANSI JIS BS Standard
DN15 ( 1/2" ) - DN100 ( 4" )
PN16 & PN10
PVC-U Pneumatic Actuator Union Ball Valve
Socket x Socket Female x Female with BSPT or NPT
Double Acting Pneumatic Actuator PVC-U Ball Valve DIN ANSI JIS BS Standard
DN15 ( 1/2" ) - DN100 ( 4" )
PN16 & PN10
PVC-U Pneumatic Actuator Union Ball Valve
Socket x Socket Female x Female with BSPT or NPT

---
