Product Details
Product Description
Product Description
【Product Descriptions】

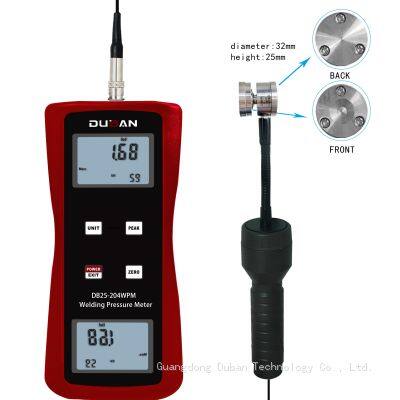

Our latest type of microelectronic digital display instrument. It has the input end of a dynamometer (pressure) and a weight transducer
(weight) strain gauge. It is used in the latest static and dynamic measurement systems, such as material test machines, printing machines, test benches and automatic equipment. Up to ≤ ± 0.02 % measurement precision, can be used in the quality test system, for the first batch or the second batch of samples for testing,To proceed to a general calibration. The measurement system consists of A modular component, specifically a long-term stable modular
component, a thermal drift transmission frequency feeder for a reduced system, and a 16-bit A/D converter guaranteeing 65.000 internal division.
【Product Features】
* High precision and high resolution.
* Numerical display, ignore the difference.
* N(Newton), kg(kg), lb(pound), 3 measurement units are available for choice, mutual calculation.
* Peak hold function. Keep the peak display until manually cleared to zero.
* Can use alkaline battery power supply; It can also be connected to 5V DC power supply.
【Product Specifications】
Model
| DB25-204WPM-100N
| DB25-204WPM-1KN
| DB25-204WPM-10KN
|
Force
Range
| ±10kgf
| ±100kgf
| ±1000kgf
|
±98N
| ±980N
| ±9800N
|
±22Lbf
| ±220Lbf
| ±2200Lbf
|
Resolution
| 0.001kgf
| 0.001kgf
| 0.01kgf
|
0.001N
| 0.01N
| 0.1N
|
0.001Lbf
| 0.01Lbf
| 0.1Lbf
|
Accuracy
| ± 0.2%FS ± 1Digit
|
Unit
| kgf, N, Lbf
|
Measurement State
| Peak Value Measurement, Real Time Measurement
|
Display
| LCD
|
Power Off
| 10 Minutes Auto Power Off, Manual Power Off
|
Backlight
| Blue Backlight
|
Safe Load
| 150%FS (Buzzer Alarm Over 110%FS)
|
Power Supply
| 2x1.5 AA(UM-3) Battery or 6V DC Power Supply
|
Operating Conditins
| Temperature: 0~40°C
|
Humidity:<80%
|
Surrounding
| No Vibration Source or Corrosive Medium Around
|
Size
| Host:199mmx76mmx37mmSenor:268mmxφ44.6 mm
sensing probe:φ32mm*25mm
|
>>
