High Capacity Active Hydrated Lime Equipment Plant Kiln Machine

Product Description

Introduction of Hydrated lime kiln Plant:
Hydrated lime kiln is the main equipment of lime production plant. It is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. The rotary kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc., the kiln body has a certain tilt angle with level. The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
The Technical Parameter of Lime Rotary Kiln

Specification (m)	Kiln size			Capacity (t/d)	Rotation speed (r/min)	Power (kw)	Weight(t)
	Diameter (m)	Length (m)	Inclination angle (%)
Φ2.5*40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5*50	2.5	50	3	200	0.62-1.86	55	187.37
Φ2.5*54	2.5	54	3.5	204	0.48-1.45	55	196.29
Φ2.7*42	2.7	42	3.5	320	0.10-1.52	55	198.5
Φ2.8*44	2.8	44	3.5	400	0.437-2.18	55	201.58
Φ3.0*45	3	45	3.5	500	0.5-2.47	75	210.94
Φ3.0*48	3	48	3.5	700	0.6-3.48	100	237
Φ3.0*60	3	60	3.5	300	0.3-2	100	310
Φ3.2*50	3.2	50	4	1000	0.6-3	125	278
Φ3.3*52	3.3	52	3.5	1300	0.266-2.66	125	283
Φ3.5*54	3.5	54	3.5	1500	0.55-3.4	220	363
Φ3.6*70	3.6	70	3.5	1800	0.25-1.25	125	419
Φ4.0*56	4	56	4	2300	0.41-4.07	315	456
Φ4.0*60	4	60	3.5	2500	0.396-3.96	315	510
Φ4.2*60	4.2	60	4	2750	0.4-3.98	375	633
Φ4.3*60	4.3	60	3.5	3200	0.396-3.96	375	583
Φ4.5*66	4.5	66	3.5	4000	0.41-4.1	560	710.4
Φ4.7*74	4.7	74	4	4500	0.35-4	630	849
Φ4.8*74	4.8	74	4	5000	0.396-3.96	630	899
Φ5.0*74	5	74	4	6000	0.35-4	710	944
Φ5.6*87	5.6	87	4	8000	max4.23	800	1265
Φ6.0*95	6	95	4	10000	max5	950x2	1659

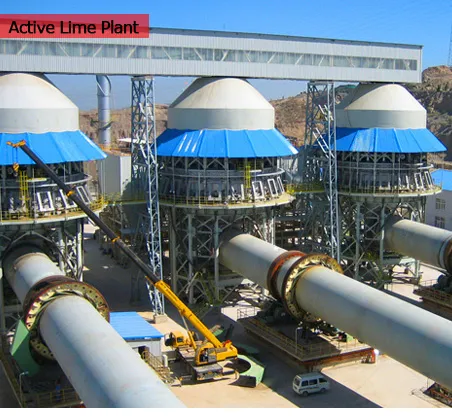

♣ vertical preheater of 2*300tpd rotary lime kiln production line plant
♣Project of PLC active lime production line
For more information about our rotary lime kiln production line plant equipment, please contact:
Ann Chen

---
