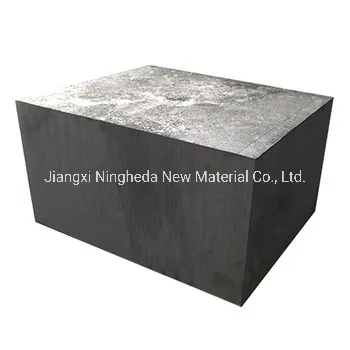

Isomoled Carbon Graphite Block for Metallugy Foundry Sintering EDM

Product Description

Isomolded Carbon graphite block for metallugy foundry sintering EDM
The fine grain graphite block produced by cold molding are widely used in machinery, electronics, semiconductors, polycrystalline silicon, monocrystalline silicon, metallurgy, chemical, textile, electric furnaces, space technology and biological and chemical industries. The graphite has the following characteristics:
1. Good electric conductivity and high thermal conductivity
2. Low thermal expansion and high resistance to thermal shock.
3. The strength increases at high temperature, and it can withstand over 3000 degrees.
4. Stable chemical property and hard to react
5. Self lubrication
6. Easy to process

Technical Index

Type	MSS80	MSS80	MSS85
Grain Size (μm)	25	25	25
Bulk Density (≥g/cm3)	1.80	1.85	1.90
Compressive Strength (≥MPa)	60	70	80
Flexural Strength(≥MPa)	30	35	40
Porosity(≤%)	17	14	10
Specific Resistance(≤μΩm)	12	12	12
Ash Content(≤%)	0.06	0.05	0.03
Shore Hardness	50	55	60

1) The ash content can be purified to 30ppm according to the requirement.
2) The above index data is the standard value, not the guaranteed value.
2. Product specification
Other sizes can be produced according to customer requirements.
High quality Carbon graphite block for metallugy foundry sintering EDM
Isomolded Carbon graphite block for metallugy foundry sintering EDM

---
