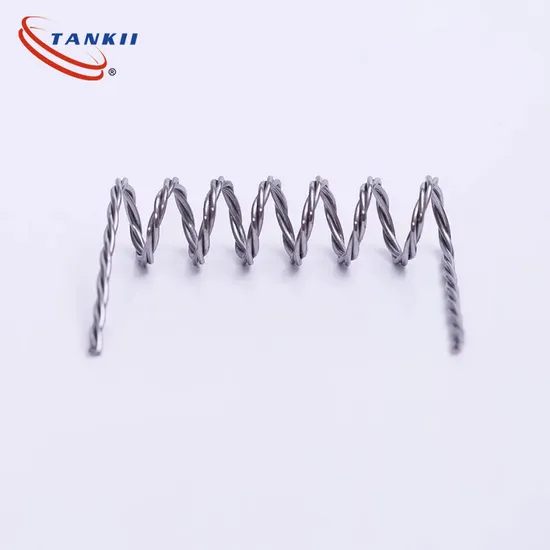

Tankii Tungsten wire/ tungsten twisted wire/ tungsten heating element/ vacuum coating material

Product Description

Tankii Tungsten wire/ tungsten twisted wire/ tungsten heating element/ vacuum coating material Tankii Tungsten heaters can be produced into single or multi-wired forms according to your specifications, Main type: double hump type, single hump type, funnel type, coil type, straight bar type, door type, hook type etc. Tungsten heaters can be produced into single or multi-wired forms according to your specifications.

Product Name	Tankii twisted tungsten filament wire used for coating / vacuum metallizing
Diameter range	0.3-1.5mm
Size	0.85*100mm, 3pcs twisted into 1pc
Grade	WAL1
Surface	Bright, polishing
Main Features	High melting point, high resistance, good intensity and low evaporation pressure, long service life
Application	Mainly applied for coating thin film in making christmas ball, bottle cap, shoe heel, reflection cap, lamp industry etc, as a heater in vacuum metalizing machine.

Tungsten is a metal known for its high melting point and excellent electrical conductivity.
The wire is typically coiled or stranded to increase the surface area and enhance heat transfer.
Tungsten stranded heaters are commonly used in various industrial applications, such as semiconductor manufacturing, vacuum furnaces, and high-temperature environments.
Tankii Tungsten heaters are known for their durability, high temperature resistance, and precise heating capabilities.
Polishing and white surface products are available, special sizes can be manufactured based on customers' requirements.

Product Name	Tungsten Filament
Purity	99.95%
Wire Diameter	0.5mm,0.6mm,0.8mm,1mm
Material	Tungsten Wire
Certificate	SGS
Type	Twisted, stranded, straightened, or customized
Feature	High melting point, high temperature oxidation resistance
Application	Vacuum Metalizing, Vacuum coating
Min.Order Quantity	2kg

Operating principle of tungsten heating elements:
tungsten has high melting point, high resistivity, good strength and low steam pressure, which is suitable for heating.
The film material is placed in a heater in the vacuum chamber.
Under high vacuum conditions, it is heated by a heater (tungsten wire heater) to evaporate.
When the Mean free path of the vapor molecule is greater than the linear size of the vacuum chamber, the atoms and molecules of the vapor escape from the surface of the evaporation source, are less impacted and hindered by other molecules or atoms, and can directly reach the surface of the substrate to be plated. Due to the low temperature of the substrate, they condense on it to form a film.

Performance characteristics: Selected WAL1 tungsten wire as raw material, the heating element produced by professional equipment has characteristics such as high melting point, good corrosion resistance, and long evaporation life.
Production equipments
Spin forging machine, the turntable draw bench, multimode draw bench, annealing furnace

Applications:
1) For producing electric light source parts and electric vacuum components;
2) For producing heating elements and refractory parts in high temperature furnaces;
3) For producing heating elements used in vacuum metalizing or plating.

Why choose us
1) Provide free sample
2) High response rates
3) Fast delivery
4) Professional after sale service
5) Bright and chemically cleaned surface with quality.
Tankii's advantages: 1. Superior performance: long lifetime; shape is stable in using; small tolerance.
2. High quality raw materials: raw material is from state-owned enterprise. electric resistance is stable, tungsten is good at temperature rising, good in evaporation.
3. Small MOQ for different customers

---
