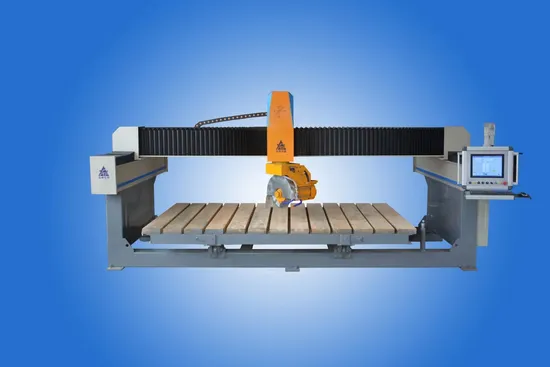

5 Axis CNC Automatic Cutter, Bridge Saw, Milling Cutter Without Ceramic

Product Description

5/5+1 Axis CNC Stone Cutting Machine was developed base on the 3-axis design and by market required to improve .It adopts CNC control system (PLC control system ), which can realize manual programming or automatic programming with ease.
Main parts:Servo motor ,17" computer ,USB ...
It can easily perform Transversal Cuts, Longitudinal Cuts, Orthogonal Cuts, arc Cuts, Circle Cuts, concave-convex Shaping,etc.,
Operators can process various forms of Chamfering and 2/2.5/3D shaping, such as Arc line shaping and chamfering...
Option:Own CNC system 5/5+1 Axis CNC Stone Cutting Machine for processing Marble, Granite, Quartz Stone, Ceramic, Porcelain, and other materials.
Stone Cutting machine of 3 /4/5axis is the new generation multi-function stone processing machine which is jointly developed by OMC and famous universities and research institutes.CNC control system synchronized with ShiLei technology system,pure touch screen operation which can be easily operated without knowing complicated CNC knowledge.
This machine can realize many advanced functions:straight and arc chamfering, cutting, drilling, milling,profiling,3D profiling and edge profiling,which are widely used by small processing factory,kitchen countertop and home decoration shops.

Model	Power	Working size	Stone material	Chamfer degree cut	Voltage	Axis
SL-H-01	11KW	3.1*1.9M	Marble ,Granite,Quartz	Yes ,0-45-90 degree	220/380/415/440	3
SL-H-02	15KW	3.1*1.9M	Marble ,Granite,Quartz	Yes ,0-45-90 degree	220/380/415/440	4
SL-H	22KW	3.1*1.9M	Marble ,Granite,Quartz	Yes ,0-45-90 degree	220/380/415/440	5

Specification

Item	Value
Product Name	CNC Cutting Machine For Marble, Granite
Working Size	3300*2000 mm
Cutting Size	3300*2000*100 mm
Z Axis Working Stroke	250 mm
A Axis Working Stroke	360°
B Axis Working Stroke	0-90°
Hydraulic Lifting Table	0-80°
Camera	If you request
Cutting accuracy	0.2 mm
Blade Diameter	350-400 mm
Main Engine	11/15 Kw/Hp
Spindle Speed	3000r/min
X/Y Axis Cutting Speed	1-2000 mm/min
A Axis Cutting Speed	0-5 r/min
Z Axis Cutting Speed	1-1000 mm/min
Voltage	380v-3 phase- 50 Hz and 220v-3 phase-60 Hz
Dimesion(L*W*H)	6000*3500*2500 mm
Weight	5000 Kg
Program Methods	CAD import, Manual Program
Control Method	CNC

---
