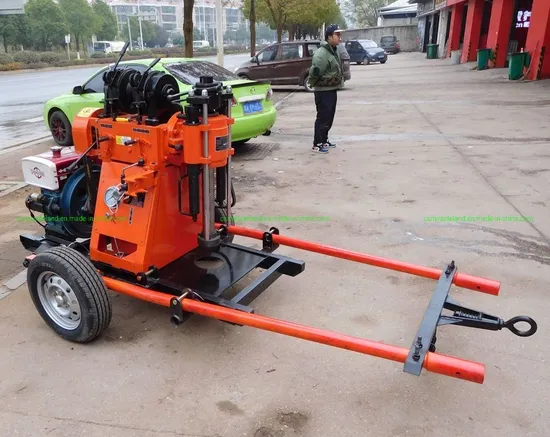

Wheel Trailer Mounted Water Well Borehole Rotary Drilling Rig (GY-150T)

Product Description

Product Description GY-150T is a portable and multipurpose engineering exploration drilling rig, applicable to the engineering geological exploration in fields of industrial and civil buildings, railways, bridges, hydropower engineering, as well as small-diameter foundation pile hole drilling.
Product Features 1. Large torque, multiple drilling speeds in an appropriate range.
2. With 2-wheels trailer, the rig can be moved by towing the trailer.
3. Capable to drill inclined holes at different angle.
4. High efficiency drilling with hydraulic feeding structure.
5. Multiple usages, geotechnical investigation for engineering constructions, SPT soil test, mineral exploration, small size pile hole, water well boring.
Product Parameters
The technical parameter of the GY-150T Drilling Rig:

Basic Parameters
Drilling depth	45-180m
Drilling diameter	300-76mm
Drill pipe diameter	42mm 50mm AW BW AWJ BWJ
Gross weight of drilling machine(engine not included)	500kg
Dimension (length ×width × height)	2050 × 1180× 1420 mm
Revolving Plate
Rated speed	60 200 400 610 1100 r/min
Maximum torque	1800N*m
Driving travel	450mm
Maximum Cylinder driving force	20KN
Maximum Cylinder lifting force	30KN
Lifter
Lifting capacity	24KN
Bobbin line speed (2 layers)	0.20 0.72 1.26 2.8 m/s
Bobbin diameter	125mm
Rope diameter	11mm
Rope capacity	26m
Oil pumps:
Displacement:	20ml/r
Normal speed	2500r/min
Normal pressure	20MPa
Max pressure	25MPa
Drive motor
Type	Changchai ZS1105 diesel engine
Rated power	13.2KW
Rated speed	2200r/min
weight	163kg
Frame
Type	Sliding type(with base frame)
Movable travel of drill	400m
Distance between drill and hole-opening	280mm

Related Photos
Packaging & Shipping

---
