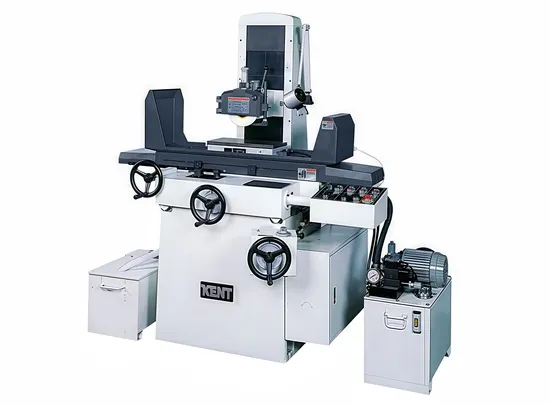

Kgs 250 Wm1 High Presicion Professional 3 Axis Automatic Process up and Down Servo Contral with 460*200mm Working Table Surface Grinding Machine

Product Description

Product Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
General Specification
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Machine Equipment
A full-supported steel ball slide structure An innovative design is employed for the workbench, which is fully equipped to ensure superbly smooth operation and exceptional grinding accuracy even under significant load.

The X-axis movement is expertly driven by a hydraulic system, ensuring precision and control.
State-of-the-art manual central lubrication
- Featuring an independent hydraulic system to effectively minimize the impact of vibrations on the machine, ensuring seamless performance.
- The automatic down-feed gearbox is meticulously designed to achieve exceptionally fine and accurate down-feed increments, enhancing the precision of your work.
- The flanged cartridge type spindle is supported by high-grade P4 super precision angular contact ball bearings, ensuring optimal performance and durability.
- A magnetic separator with an 80L tank for efficient cooling and rinsing is available as an optional feature, enhancing the machine's versatility.
- KENT electro magnetic chuck for superior holding capabilities.
Power supply = DC 110 volt, Single-phase, 50 Hz /60 Hz, offering compatibility with various power sources.
- KENT Y&Z axis digimatic gage is available as an optional addition for enhanced measurement accuracy.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Standard Equipment
Consisting of:

Granding Wheel Flange	Flange Removal Tool	Balance Table
Balance Rod	Grinding Wheel (Φ180*13*Φ31.75)	Tool Set
Machine to Adjust Sizing Block	Complete Document	Acceptance report According to DIN 8632

(Standard accessories may be different depending on the model.)
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Parameters

Granding Range	mm	460*200
Cross Travel	mm	260
Longitudinal Travel	mm	540
Size of Electro-Permanent Chuck	mm	460*200
Distance Table to Spindle Center	mm	475
Table Lode incl. Magnetic Chuck	kg	100
Longitudinal Table Speed	m/min	5~28
Infeed Cross Axis (50Hz / 60Hz)	mm/min	800/1000
Infeed Vertical Axis (50Hz / 60Hz)	mm/min	300/300
Grinding Wheel Dimensions	mm	Φ180*13*Φ31.75
Grinding Spindle Drive	hp(kW)	2(1.5)
Variable Speed of Grinding Spindle Motor	rpm	3000/3600
Machine Weight	kg	1300
Floor Space	mm	1800*1400

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Company Profile

About Our Company:
KENT Industry, the eminent pioneer in precision grinding machines since 1966, stands tall as a beacon of 'technology', 'innovation', and 'reliability'. Our relentless pursuit of research, innovation, and excellence has heralded a new epoch in Taiwan's machinery industry. Our flagship offerings include surface grinders, CNC surface grinders, gantry-type surface grinders, cylindrical grinders, disc grinders, vertical machining centers, and gantry-type machining centers, among others. With a global footprint, over 150,000 machine tools have been sold worldwide, seamlessly integrated into countless enterprises. KENT embraces its rich legacy while forging a future of ingenious precision and craftsmanship, leveraging digital technology management to evolve into a joyful intelligent factory.
KENT Machinery Co., Ltd. is an esteemed subsidiary wholly established in the National Hangzhou Xiaoshan Economic and
Technological Development Zone under the auspices of the KENT Industrial Group,
a globally celebrated brand with over five decades of mastery in manufacturing machine tools in Taiwan.
KENT remains unwavering in its commitment to
the core principles of 'technology, innovation, and reliability' derived from its parent company, embracing a quality policy that prioritizes 'customer benefit', and a mission focused on 'delivering superior quality products and contributing to China's economic development' to foster industrial growth in China. Zhejiang KENT continues the legacy of ingenious design and a meticulously refined manufacturing process from its parent company. Over 30,000 KENT machine tools have significantly impacted the Chinese industrial landscape, garnering trust and accolades from our esteemed clientele.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Our Advantages
Why Choose Us? Discover the Excellence
Since 1996, KENT has been dedicated to producing top-of-the-line machinery, earning a reputation for quality and reliability. Experience High Efficiency, Outstanding Cost Performance, and Exceptional Production Value with Our Machines. Explore our surface grinding machines and beyond, celebrating over 60 years of innovation and excellence.Immerse yourself in unparalleled precision and craftsmanship...
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Our Exhibition
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- FAQ
Q1:Can we visit your factory before order?A: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick you up at the station or airport if needed .
Q2:What's your main products of your company?A: We specialized in all kinds of machine tools,such as Surface Grinding Machine, CNC, Milling machine, Lathe Machine,Lathe Feeder Machine and so on.Q3:Can you provide customized machines?A: Yes, we can design and manufacture according to your specific requirements.Q4:Do you have professional engineers?A: Yes,we have professional engineers and designers.Q5: Does your company provide professional training?A: Yes, we provide training and teaching or use video teaching.Q6:How can I choose the most suitable machines?A: You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.Q7:What is your terms of delivery?A: FOBQ8:What is your terms of payment.A:TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.Q9:How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q10: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q11:Can you provide product samples?A: Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.Q12:What industry are your machines used in?A:Automobile parts industry,Electronic Equipment Industry, Home appliance industry, and so on.

---
