PE Pipe Extrusion Machine Line/HDPE Pipe Production Line/Plastic HDPE/LDPE/PPR Electricity Conduit Tube/ Water Sewage& Gas Pressure Supply Pipe Line

Product Description

PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet/laser printer, etc. to achieve the production and manufacture of high-grade tubing.
Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

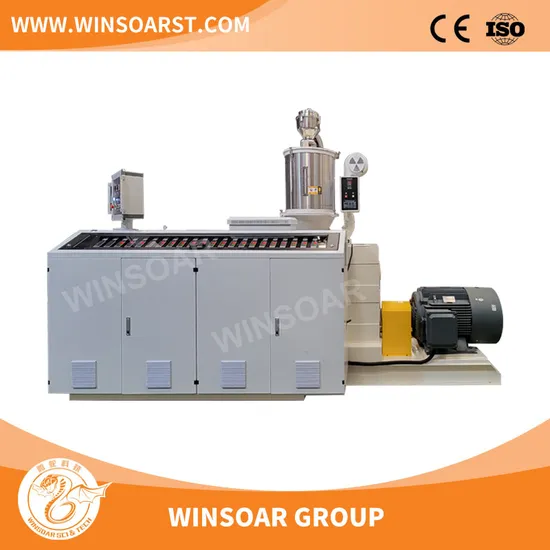

PE Pipe Extrusion Machine Features:
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer a stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

330 Series Classical Production Line
Diameter	Type	Max.Capacity(kg/h)	Max.Haul Off Speed(m/min)	Power
20-63	SJ65/33	220	12	55
20-110	SJ65/33	220	12	55
50-160	SJ75/33	400	10	110
90-250	SJ90/33	400	6	110
160-450	SJ120/33	500	4	160
400-630	SJ120/33	850	2	280
500-800	SJ120/33	850	2	280
315-630	SJ120/33	850	2	355
500-800	SJ150/33	1100	1	400

380 Series High Efficient Production Line
Diameter	Type	Max.Capacity(kg/h)	Max.Haul Off Speed(m/min)	Power
20-63	WSD60/38	320	30	70
20-110	WSD60/38	380	20	90
40-160	WSD60/38	460	15	110
50-250	WSD75/38	600	12	160
110-450	WSD90/38	850	8	250
250-630	WSD90/38	1050	4	280
500-800	WSD120/38	1300	2	355
710-1200	WSD75/38 WSD90/38	1450	1	160/250
1000-1600	WSD90/38	1900	0.6	280/280
