250kg-8 Chinses Brand European-Style Electric Chain Crane Hoist with Manual Trolley

Product Description

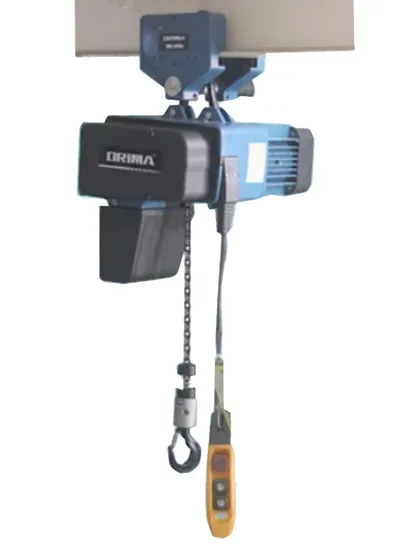

250kg-8m/min European-Style Electric Chain Crane Hoist with Manual Trolley

Manual trolley electric chain hoist is a lifting equipment that combines the flexibility of a manual trolley with the high efficiency of an electric chain hoist.
Structural Composition
It is mainly composed of the following parts:
Electric chain hoist: It contains components such as a motor, sprocket, chain, and hook. The motor provides power to drive the sprocket to rotate, enabling the chain to perform retracting and releasing operations, thereby realizing the lifting and lowering of heavy objects. Manual trolley: Composed of wheels, frame, and operating handle. It can be manually pushed on the track to move the entire equipment in the horizontal direction and expand the operating range. Track: Usually made of section steel such as I-beam, providing a walking path for the manual trolley.
Working Principle The electric chain hoist is driven by electricity to perform lifting operations. The operator can control the forward and reverse rotation of the motor through control buttons to realize the ascent and descent of the hook. At the same time, the movement of the manual trolley on the track is used to adjust the lifting position.

Characteristics and Advantages

1. High efficiency and convenience: Electrically driven to lift heavy objects, with fast speed and high efficiency, saving manpower and time. At the same time, the design of the manual trolley is convenient for operation at different positions.
2. Flexible movement:
The manual trolley can move freely on the track, enabling the equipment to adapt to different work scenarios and improving work flexibility.
3. Safe and reliable:
Equipped with safety devices such as overload protection and limit protection to ensure the safe progress of lifting operations.
4. Simple operation:
The control button design is concise and clear, easy to operate, and even personnel without professional skills can quickly get started.
IV. Application Scenarios

Widely used in factory workshops, warehouses, construction sites and other places for equipment installation, cargo handling, construction material hoisting and other work.
For example, in a factory, large equipment can be conveniently moved from one workstation to another; in a warehouse, goods can be loaded and unloaded quickly to improve logistics efficiency.

Model	Lifting Weight (kg)	Lifting Speed	Numbers Of Chain	Working Lever FEB/ISO
BMS0.125-8-4-01M	125	8m/min 2m/min	1	2m/5M
BMS0.125-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.25-8-4-01M	250	8m/min 2m/min	1	2m/5M
BMS0.25-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.25-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-8-4-01M	500	8m/min 2m/min	1	2m/5M
BMS0.5-12-4-01M		12m/min 3m/min	1	2m/5M
BMS0.5-16-4-01M		16m/min 4m/min	1	2m/5M
BMS0.5-24-4-01M		24m/min 6m/min	1	2m/5M
BMS0.5-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01-6-4-01M	1000	6m/min 1.5m/min	1	2m/5M
BMS01-8-4-01M		8m/min 2m/min	1	2m/5M
BMS01-12-4-01M		12m/min 3m/min	1	2m/5M
BMS01-16-4-01M		16m/min 4m/min	1	2m/5M
BMS01-4-4-02M		4m/min 1m/min	2	2m/5M
BMS01.6-6-4-01M	1600	6m/min 1.5m/min	1	2m/5M
BMS02-6-4-01M	2000	6m/min 1.5m/min	1	2m/5M
BMS02-8-4-01M		8m/min 2m/min	1	2m/5M
BMS02-4-4-01M		4m/min 1m/min	2	2m/5M
BMS2.5-6-4-01M	2500	6m/min 1.5m/min	1	2m/5M
BMS2.5-8-4-01M		8m/min 2m/min	1	2m/5M
BMS2.5-4-4-01M		4m/min 1m/min	1	2m/5M
BMS3.2-3-4-02M	3200	3m/min 1m/min	2	2m/5M
BMS3.2-4-4-02M		4m/min 1m/min	2	2m/5M
BMS3.2-6-4-02M		6m/min 1.5m/min	2	2m/5M
BMS05-3-4-02M	5000	3m/min 1m/min	2	2m/5M
BMS05-4-4-02M		4m/min 1m/min	2	2m/5M

---
