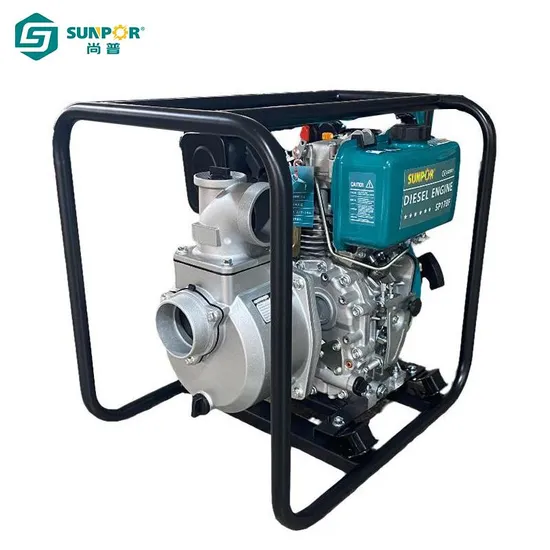

2 Inch 3 Inch 4 Inch 6 Inch 8 Inch Mini Portable Diesel Water Pump for Agricultural Irrigation

Product Description

WUXI KATM POWER TECHNOLOGY CO.,LTD is a leading manufacturer specializing in the production of diesel engines, diesel water pumps (clean and high-pressure pumps), diesel iron water pumps (iron cast water pumps), open-type diesel generators, and silent diesel generators. Products are with differnt styles, please inquiry for details or recommendations.
Product Description Advantages of Our KDP30
1. High Efficiency:ensuring maximum water output for agricultural irrigation and other applications.
2. Durability: Cast iron construction provides exceptional durability, making these pumps highly resistant to wear and tear, even in demanding environments.
3. Powerful Performance, Versatility, Reliability, Longevity, requiring minimal maintenance, reducing overall operating costs.
4. Fuel Efficiency, Easy to Operate and Environmentally-Friendly.
5.Broad Range of Options: High-pressure cast iron diesel water pumps are available in various sizes and power options, allowing users to choose the right pump that meets your specific requirements. Diesel Pressure Water Pump

Diesel Water Pump
Model		KDP20	KDP30	KDP40	KDP60	KDP80
Type		Diesel water pump	Diesel water pump	Diesel water pump	Diesel water pump	Diesel water pump
Scution/Discharger Port Diameter	mm(in)	50(2")	80(3")	100(4")	150(6")	200(8")
Max.Discharge Capacity	m3/h	36	50	96	150	230
Max.Head Lift	m	25	26	22	20	15
Self-Priming Time	s/4m	80	120	180	180	300
Max.suction head	m	8	8	8	8	7
Rotation speed	r/min	3600	3600	3600	3600	3600
Noise Level	dB(A)/7m)	85	85	85	85	85
Overall Dimension	mm	500X420X530	570X465X560	660X480X610	790X580X780	980x730x930
Dry Weight	kg	37	45	62	93	218
Engine Model		SP170F	SP178F(click here)	SP186F	SP192F	SP2V92
Rate Power	KW	2.8	4	6.3	8.5	18
Fuel Consumption	g/kw.h	288	285	281	281	270
Displacement	cm3	211	296	418	499	997
Start system		Recoil/Electric	Recoil/Electric	Recoil/Electric	Electric	Electric
Fuel Tank capacity	L	2.5	3.5	5.5	5.5	33
Continuous working period	H	2.6	2.6	2.6	2	5.5
