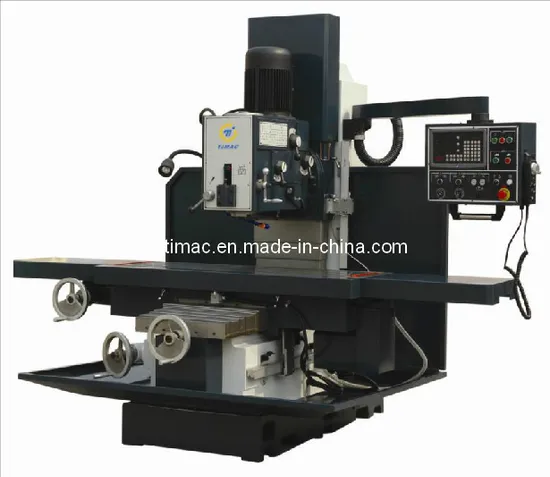

Bed Type Milling Machine / Heavy Duty Milling Machine (BM400G)

Product Description

Bed Type Milling Machine / Heavy Duty Milling Machine (BM400G)
Standard accessories:
Electric cabinet and hung up control panel
Oil collecting plate, collant pump, draw bar,
Manual pulse generator(MPG), auto.
Lubricate pump, machine vise, collt chuck,
Reduction sleeve, work light, 3-axis digital readout.
Wrenches, operation manual
Optional accessories:
Clamping kits, air power draw bar, rotary table,
Dividing head
Technical Parameters

Specification	BM400G
Spindle taper/Diameter of quill	ISO50/180mm
Distance from spindle to table	110 mm-640 mm(30 mm-530 mm)
Distance from spindle to column	540 mm
Number of spindle speeds/Range of spindle speeds	12(step)/40-1800 r.p.m
Spindle travel	80 mm
Head swivel angle	+/- 30º
Size of table	1525 mm×400 mm(2000 mm×400 mm)
Table travel/X/Y/Z	1200 mm(1500 mm)/500 mm/500 mm
X,Y-axis Rapid feed speed	3000 mm/min
Z-axis Rapid feed speed	1800 mm.min
Rate of feeding/ Control equivalent	1-3000 mm/min 0.001 mm
Max. Weight of workpiece	800 kg
T -slot Number/Width/Distance	3/18 mm/98 mm
Milling head moving(Vertical)slide way	Rectangle slide way
Cross slide way	Rectangle slide way
Longitudinal slide way	Adjustable dovetail slide way
Main motor	5.5 kw (7.5 kw)(7.5 HP)
X,axis driving motor	(Servo motor)1.5 kw
Y axis driving motor	(Servo motor)1.5 kw
Controller type	PLC control
Coolant pump power	90 w(25L)
Overall dimension	2825×2160×2150 mm
Packing size	1900×2250×2280 mm
N.W/G.W	4260/4460 kg

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
