Laser Cutting Machines Stainless Steel Fiber Laser Cutting Machine

Product Description

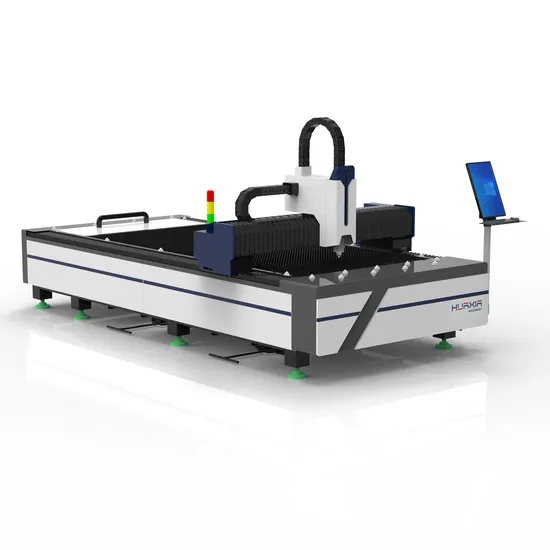

Plate Metal CNC Fiber Laser Cutting Machine

Medol	HX-3015/4015/4020/6015/6020
WorKing Area	3000*1500mm(customizable)
Positional Accuracy	±0.02mm
Repeat Repositioning Accuracy	±0.01mm
XY Max linkage speed	145m/min
Laser Power	1500W/2000W/3000W/6000w/12000w
Laser source	MAX/Raycus/IPG
Maximum acceleration	2G
Upgrade	Tube cutting/Exchange platform /Enclosed protection

Main Features
1. Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
2. Machine frame, crossbeam and worktable adopt integral welding structure. Keeping the normal use of 20 years without deformation. 3. X, Y and Z axes use imported Japan servo motor with high precision and speed.
4. Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
5. Laser is produced without gas and it could use air to cut sheet metal.
FAQ

Q1. How can I get the suitable machine ?
Please tell us the materials you need to process , and the materials size like the length , width and thickness , we will suggest suitable machine according to your requirement.
Q2. What about the after-sale service for this machine?
We support 24 hours online service, and can use remote control to help you check and solve the problem. And we also support door service to install and teaching.
Q3. How do I install the machine after I receive it?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them. After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
Q4. Does the machine have CE , ISO and other safety certificates?
All our machines has safety certificates. You can ask for the electronic version of the certificate with our sales staff.
Q5. What is the delivery time for the machine?
Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
Q6. Why should you buy from us not from other suppliers?
Our company has 20 years experience in this field ,owns 4 automatic production lines, and the annual production capacity of laser cutting machines exceeds 1,500 units. All machines passed the European CE authentication, ISO 9001 certificate .

---
