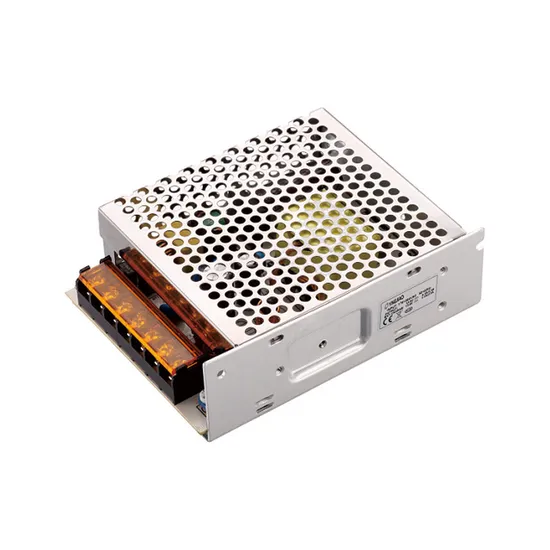

Line-Type Metal Case Power Supply -Industrial Electrical Adapter

US$16.90-18.90 1,000 Pieces (MOQ)

Basic Info.

Model NO.
YSI-20;YSI-36;YSI-80;YSI120;YSL30L;YSL60L;YSL100l
Output Type
AC/DC
Warranty
3 Years
Output Power
200W Max.
Input Voltage
110/230VAC 50/60Hz
Connection Mode
Other
Starting Mode
Other
Voltage Regulating Mode
Other
Modulation System
Other
Brand
No
Model
Ysi-200
Power
200W Max.
Input
110/230VAC 50/60Hz
Output Voltage
5-48V
Output Current
0.01-30A
Input Current
3.0A Max.
Transport Package
10PCS/CTN
Specification
51*40*22.5CM
Trademark
No
Origin
China
HS Code
8504401400
Production Capacity
800000PCS/Per Month

Product Description

DETAILS1.
1.Name of commodity:200W Industrial Power Supply/YSI-2002.Technical data:
Model: YSI-200
Power: 200W max.
Input: 110/230VAC 50/60Hz
Output Voltage: 5-48V
Output Current: 0.01-30A
Input current: 3.0A max.
Inrush Current: Cold start 45A. at 240VAC/50Hz,full load
Leakage Current: 2mA max. at 240VAC input
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Working TEMP.: -20°C-60°C
Working Humidity: 20%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: CE,EMC,FCC,CCC,RoHS,REACH
EMI EMISSION: Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
SAFETY STANDARDS: EN 60950-1:2006+A11:2009+A1:2010+A12:2011
MTBF: 100000 hours minimum at full load at 25ºC ambient
Life: 3-5 years alternative
Dimension: 198*110*50mm (L*W*H)
Weight: 770g
Packing: 51*40*22.5CM/10PCS

3.Details for specification:
Model: YSI-0502000 YSI-1201600 YSI-1501300 YSI-2001000 YSI-3600550 YSI-480400
DC Voltage: 5V 12V 15V 20V 36V 48V
Rated Current: 40A 16A 13A 10A 5.5A 4.0A
Current Range: 0-40A 0-16A 0-13A 0-10A 0-5.5A 0-4.0A
Rated Power: 200W 200W 200W 200W 200W 200W
Ripple & Noise(max.): 100mVp-p 120mVp-p 150mVp-p 240mVp-p 360mVp-p 480mVp-p
Voltage Tolerance: ±5% ±5% ±5% ±5% ±5% ±5%
Line Regulation: ±3% ±3% ±3% ±3% ±3% ±3%
Load Regulation: ±5% ±5% ±5% ±5% ±5% ±5%
Setup,Rise,Hold up time: 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.

If you are interested in our products, you can feel free to contact us directly. Your specific enquiry will be highly treated. We will quote you our most favorable price.
Yingjiao Electrical Co., Ltd.
Manager: Jannice Wu
