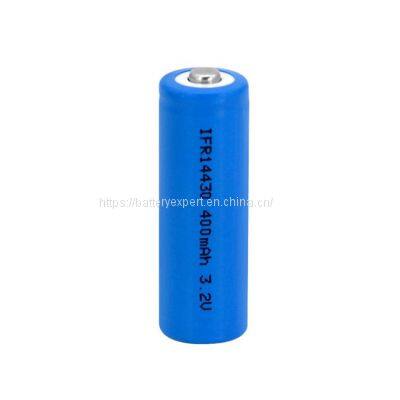

Rechargeable lithium iron phosphate battery 3.2V 400mAh 14430 Cylindrical LiFePO4 Battery Cell

Product Details

Product Description

Product Description
Rechargeable lithium iron phosphate battery 3.2V 400mAh 14430 Cylindrical LiFePO4 Battery Cell:

No.	Item		Specification	Remarks
1	Brand Name		OEM
2	Model NO.		IFR14430
3	Normilar Capacity		400mAh	0.2 C5A discharge
4	Normilar Voltage		3.2 V
5	Discharge Voltage (Min.)		2.0V
6	Charging Voltage (Max.)		3.65V
7	Charging Current (std.)		2 C5A
8	Discharging Current (Max. continue)		1 C5A
9	Discharging Current (Max. temporary)		3 C5A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery 14430 400mAh
14	Internal Impedance		≤80 mΩ
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		14*14*43mm	Recommend or Customize
17	Weight		Approx. 16g	PVC/ABS package
18	Cycle Life		5000 times
19	Warranty		12 months

Typical Advantage of our lithium Iron phosphate battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.

---
