Communication Cable FTTH Fiber Drop Cable St-St Connector Pacth Cord

Product Description

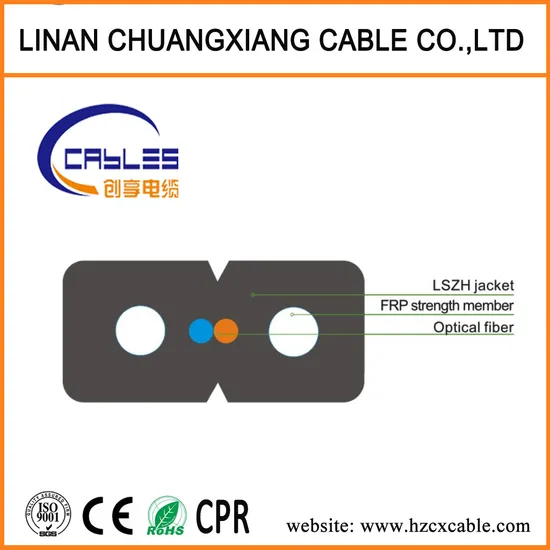

SN	Item	Unit	Value
1	No. of fibers	count	1/2/4
2	Sheath material		LSZH
3	Fibers color		Blue / Orange or customized
4	Strength member		FRP/Steel wire
5	Cable diameter	mm	3*2
Note: Customized requirements are welcomed!

Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Fiber Parameters

No.	Items		Unit	Specification
				G.657A1
1	Mode Field Diameter	1310nm	μm	9.0±0.4
		1550nm	μm	10.1±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation (max.)	1310nm	dB/km	≤0.35
		1550nm	dB/km	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm	dB	≤0.75
		1turn×10mm radius@1625nm	dB	≤1.5

	Delivery Time	Payment Terms	Shipping Method
Samle Order	1-3days	100% in Advance	By Air
LCL Order	3-25days	30% Deposit and the Balance Paid Before Shipment Or Against B/L Copy	By Air Or By Sea
FCL Order	25-45days		By Air Or By Sea

Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.
Our Main Products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interested in our competitive products,Just call me,Let's talk more!

---
