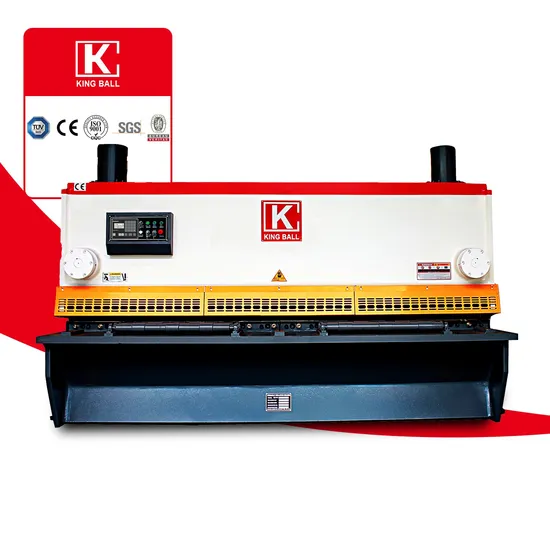

Manual Guillotine Shear

Product Description

hydraulic shearing machine price
Model: QC11Y-16X2500
Main functions and features
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
Technical Parameters

NO.	Item		Parameter	Unit
1	Cutting thickness		16	mm
2	Cutting Length		2500	mm
3	Backgauge Range		20-800	mm
4	Material Strength		≤450	N/mm²
5	Shear Angle		0.5-2.5	°
6	Strokes		≥6	(min-1 )
7	Main motor power		18.5	KW
		L	3215	mm
8	Overall dimension	W	1970	mm
		H	2340	mm
9	Machine weight		9500	kg

E21S Controller Backgauge and block control Control for general AC motors, frequency inverter Intelligent positioning Stock counter Holding/decompression time setting Program memory of up to 40 programs Up to 25 steps per program One side positioning Retract function One key backup/restore of parameters mm/inch Chinese /English Main configuration

Name	Producer
CNC controller	E21S Estun China Brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw	HIWIN Taiwan brand
Tubing connector	EMB Germany Brand
Variable frequency drive	Shihlin Taiwan Brand

The standard accessories are in the below: Anchor bolt Hex nut Seal ring Washer Grease gun Allen wrench Feeler gauge Foot switch Front support arms Electrical box key, control panel key Operation manuals

---
