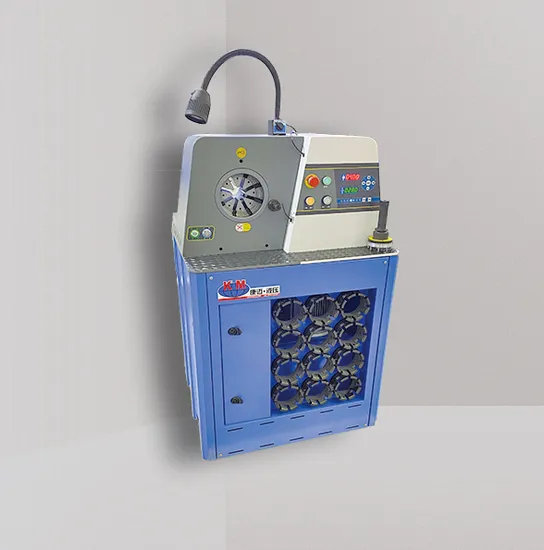

Hydraulic Clamp Crimping Machine for Hose/Pipe/Tube 1/4′′ to 2′′

Product Description

* TECHNICAL DATA OF HOSE CRIMPING MACHINE*

Type	KM-91C-08
Crimping range	6 mm-87 mm
Hose size	2 inch
Standard voltage	380V or customized
Motor power	3 kW
Opening without dies	122 mm
Opening	28 mm
Speed	900 times/hour
Dimensions (mm)	800*630*1376
Weight with out oil	310 kg
Oil	65 L
Number of die stets	12
Noise level	75 dB
Back limit switch	Optional

* Optional Voltage: 220V/440V
* DIES SET OF HOSE CRIMPING MACHINE*

Die No.	Crimp Range(mm)	D(mm)	L(mm)
11	11-14	11	55
14	14-16	14	55
16	16-19	16	55
19	19-22	19	55
22	22-26	22	55
26	26-30	26	70
30	30-34	30	70
34	34-39	34	70
39	39-45	39	90
45	45-51	45	90
51	51-57	51	90
57	57-63	57	100
Die can be customized according to your needs.

DETAILS
* ADVANTAGES OF HOSE CRIMPING MACHINE*
* Back reseting hydro-cylinder, can be easily operated.
* Increasing the opening, and good passing performance.
* Added with base-protective resin gasket to not damage the working surface.
* Function: manual, semi-automatic and automatic.
* Support quick die change
* QUICK DIE CHANGE*
People from all works of life chose our hose crimping machine.
Our factory is located in Wangzhuang village, Shangcheng Town,Cheng'an County, Handan City,Hebei Province, China. Here the birds are singing and the flowers are fragrant.
We are warmly welcome friends from all over the world to visit our company.
Our company uses a variety of high-precision processing equipment, and every year will update the equipment.
Strict management, orderly arrangement and meticulous work spirit.
We arrend many exhibitions every year.The show attracts visitors from all over the world. We got a lot of consultation from the show.
Our company has passed ISO9001, SGS and CE certification.
Well, so many suppliers, why you should choose us?
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.Kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.1/4
2.The fitting and hoses crimped by kangmai machine never leakage the oil and never broken.The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC.The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting.Casting is cheap but has small hole on machine head.The piston will divide from casting machine head.
3.Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard.Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on.Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment.Everything is ok, the inspector signed and machine allow to go out the facotry.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

---
