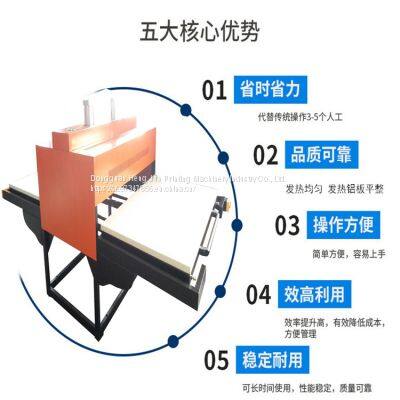

Automatic sublimation transfer printing machine
Printing area: 100×120 cm
Voltage 110V 220V 380V three-phase four-wire
Power: 9kw
Temperature range: 0-399℃
Time range: 0-999S
Cylinder stroke: 125cm
Working pressure: 8kg
Weight: 820KG
Packing size: 100×160×170cm
Our printing equipment is ideal for thermal transfer printing or heat treatment of textile fabric products, ceramic products, and metal products. It is suitable for hot stamping garments, handbags, umbrellas, shoes, hats, handicrafts, gifts, advertising supplies, etc. It can transfer foaming heat transfer, penetration heat transfer, magic color heat transfer, sublimation heat transfer, flocking heat transfer, hot stamping heat transfer, swimsuit heat transfer, electronic technology image heat transfer, hot drilling, hot beads, hot glue, etc. to the hot stamping items you need.
Technical parameters: The electrical control of this machine adopts advanced technology, imported components, automatic limit, accurate, safe, high reliability and long service life;
Electronic digital constant temperature control, high accuracy (±1-2℃);
Electronic time control, high accuracy;
The oil heating heating plate adopts advanced technology, the liquid circulation conducts heat evenly, and the thermal conductivity is strong.
Features:
The heat press machine adopts pneumatic type, which is labor-saving, time-saving and easy to operate.
Full digital display time controller, can accurately adjust to the required time, all electronic
Temperature controller, temperature error: "±2℃".
The overall structure of the equipment is stable, not easy to deform, runs smoothly, and has low noise.
Fully automatic control, the pressure is stable and even, and the pressure can reach 8KG/CM.
The workbench can be switched between manual persuasion and automatic operation.
The double-sided push-pull working table is adopted, which is labor-saving in operation and fast in printing speed.
The heating plate is made of aluminum all-gold and the heating tube is cast into one, and the heating device heats up quickly.
Fast, up to 200 ℃ in 20 minutes, uniform temperature, heat preservation, power saving. The transfer area is large, and it can undertake large-scale billboards and film printing.
>>
