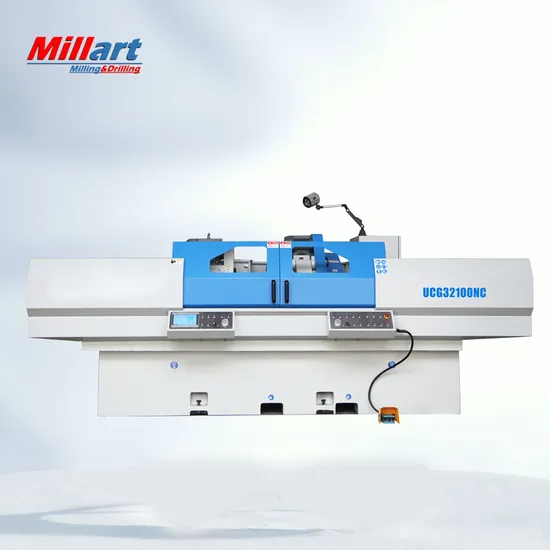

Ucg Series Universal Cylinder Grinding Machine, Ucg32100nc Advanced Universal Cylindrical Grinding Machine

Product Description

Product description:
Technical parameter :
Feature :

Model	Unit	UCG32100NC
Working capacity
Center height	mm	180
Grinding diameter (external)	mm	8-320
Maximum length of grinding(external)	mm	1000
Grinding hole diameter(inner)	mm	25-100
Grinding depth(inner)	mm	125
Max. work piece	kg	150
Working table(Z axis )
Worktable travel	mm	1200
Worktable rapid feed speed	Mm/min	1-6000
Worktable fine feed rate	mm	0.005
Worktable swivel range	deg	-2~9
Grinding wheel head (X axis)
Wheelhead cross travle	mm	265
Cross feed rpaid speed	Mm/min	1-6000
Cross feed rate	mm	0.01
Wheelhead swivel range	deg	-10
Wheelhead spindle speed	R/min	2140
Grinding wheel dimensions	mm	400*50*203
Grinding wheel peripheral speed	M/s	45
Workhead
Spindle speed range	R/min	26-260
Workhead swivel range	deg	0-90
Center taper	MT	#4
Tailstock
Quill manual travel range	mm	30
Center taper	MT	#4
Quil engine drive mode		pneumatic
Motor
Wheelhead spindle motor	kw	4
Workhead spindle motor	kw	1.1
X/Z axis drive servo motor	kw	1.5
Coolant pump	kw	0.125
Total power capacity	KVA	12
Machine
Floor space	cm	480*280*200
Package dimensions	cm	425*220*180
Machine weight	kg	4000
Inner grinding device
Spindle motor power	kw	1.1
Spindle speed	r/min	10000
Grindwheel dimensions	mm	30*25*10

Standard accessories:

1.Coolant tank

2.balancing arbor

3.wheel flange and wheel

4.wheel extrator

5.standard dressing stand(not include diamond pen)

6.leveling wedge

7.tools and tool box

8.3 draw chuck

9.driving dog

10.carbide center

11.internal grinding attachment

Optional accessories:

1.wheel balancing stand
2.open steady rest
3.close steady rest
4.radius wheel dresser
5.4 draw chuck
6.diomand pen
7.full close guard
8.Magnetic separator and paper filter coolant tank

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
