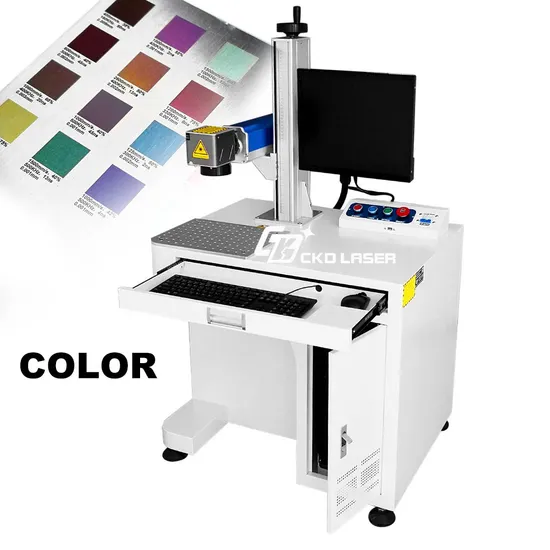

Mopa Color Laser Marking Machine for Stainless Steel Cooper Brass Chromium Nickel Molybdenum Alloy

Product Description

Product Description
CKD-TLMA is a long history, most mature model of laser marking machine, used for daily big batch material processing. It's widely used for surface logo marking, deeply engraving or thin metal cutting. It's all-in-one, conveniently and supports kinds of expanded functions.
APPLICATION FILDES
Electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.
APPLICATION MATERIAL
All metal: Such as, stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Some non-metal: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face, etc.
CKD-TLMA V20.04 adopts scan head built-in double big focus tools, never worry difficult calibration for red lights or off focus. It's built-in computer, keyboard and mouse. Users can choose big or small position board, with or without rotary.
CKD-TLMA V20.04, standard configuration is manual focus, the Z-axis is with focus fixture to avoid accidently focus change. We also supply motorized focus as one more choice.
CKD-TLMA can mark around column or cylindrical objects, such as cup, bottle, tube and so on, rotary is an optional attachment also.
Example
Samples for rotary marking:
Marking scope is optional, standard scan scope is 100*100mm, the user can choose more lenses for other applications. Suggest big power with 2 lenses, smaller one for cutting, bigger one for big scope marking.
Configuration
CONFIGURATION

Type	Laser source	Function	Scan scope	Operation
CKD-TLMA-20	Fiber, Q-switched, 20W	Mark	70*70/100*100 /150*150mm	Windows computer + EzCad2 marking software
	Fiber, MOPA, 20W
CKD-TLMA-30	Fiber, Q-switched, 30W	Mark, engrave	70*70/100*100 /150*150/ 200*200mm
	Fiber, MOPA, 30W
CKD-TLMA-50	Fiber, Q-switched, 50W	Mark, Engrave, Cut
CKD-TLMA-60	Fiber, MOPA, 60W
CKD-TLMA-100	Fiber, MOPA, 100W		70*70/100*100 /150*150/200*200 /300*300mm
CKD-TLMA-120	Fiber, MOPA, 120W

Marking software of EzCad2: CKD-TLMA can add kinds of devices, such as long X-axis, multi-station rotary, 50/80/100mm rotary and so on.
Notice: if the user wants expanded functions, please inform us reserved them in advance, standard machine is without expanded functions.
Application
Marking samples:
Deeply engraving on metal, touch-less marking on stainless steel, circle marking on watch, name or brand printing on tags, color marking on stainless steel, design marking on decorations and so on.
Because CKD-TLMA has its own workbench, it is very suitable for batch processing studio. There are universal wheels with brakes on the bottom, the machine can be easily moved and fixed. Optional parts
Optional parts:

Rotary	50mm for jewelry
	80mm
	100mm
	Multi-stations
Laser protection	Goggle
	protective glass
Others	Position bars
	Electric ruler
	Motorized focus
	One more lens

More details about optional parts: Enter from HERE
ABOUT PACKING
Packed by wooden box: 86*100*120cm
Gross weight: 140Kg
Notice: Packing size and gross weight will have reasonable error because wood reason. Above weight is not including the weight of optional parts.
Why we choose this type?
* Multi material application, can mark metal and some non-metal, support deeply engraving and cutting.
* Multi-functions, can mark vector, bit map (photo), series number, logo, bar code, QR and so on.
* Can add expand axis, such as rotary and so on.
* Fast speed, improve work efficiency.
* Built-in computer, easy operation.
* No consumable materials, cleaner than traditional printing.

---
