Original Dsr Automatic Voltague Regulator AVR for Meccelte Alternator

Product Details

Product Details

Product Description

Product Description

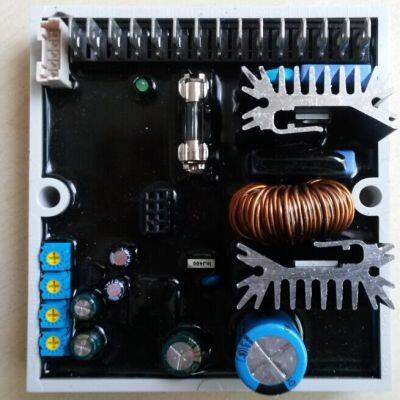

Original DSR AVR for Meccelte Alternator
General Description / Specifications
The DSR made by Meccalte S.P.A is made for synchronous alternators made for automatic calibration and operations. It is equipped with an RS485 & RS232 interface for communications when necessary. This regulator shares many of the same characteristics of the SR7 automatic Voltage Regulator.
Technical Characteristics
- Full digital controlled regulator, based on DSP
- On-board machine installation
- Suitable for all self-regulated alternators
- Voltage supply: 40Vac÷270Vac (from auxiliary winding, output voltage or PMG)
- Frequency range: 12Hz ÷ 72Hz
- "Sensing" of voltage with true rms or average measurement (70÷280 Vac)
- Maximum continuous output current: 4Adc;
- Precision of voltage regulation: ± 1% from no-load to nominal load in static condition, with any power
- Factor and for frequency variations ranging from -5% to +20% of the nominal value.
- Transient power drops and over voltage within ± 15%
Product Paramenters
Product Name
DSR
SENSING/POWER INPUT

Voltage
50-280VAC, 50-60HZ
MAGNETIC FIELD OUTPUT

Voltage
Max 100VAC at 270VAC input
Current
Continuous 8A Intermittent 10A within 10 seconds
PRESSURE REGULATING ACCURACY
<+/1%RMS with 4% engine governing

Characteristics
Variable voltage supply40 ÷ 270 Vac
Frequency range15 Hz ÷ 72 Hz
Precision of voltage regulation± 1%
Maximum continuous output current5 Adc
Environmental temperature-25°C ÷ +70°C
RegulationTrue RMS or average measurement (70÷280 Vac)
Transient power drops and overvoltagewithin ± 15%
Voltage recovery timewithin ± 3% of the value set, in less than 300 msec
Transient overvoltage during start upless than 5% of nominal voltage
SensingSingle phase
Parameters (can be programmed via software)VOLT, STAB, AMP and Hz can be set with trimmers (default)
50/60Hz through a "jumper" (default)

Features
Analogical remote control of output voltage is possible through external voltage (0÷2,5Vdc) or with a 10 Kohm linear potentiometer
Underspeed protection with adjustable threshold and slope
Overvoltage and undervoltage alarms
Excitation overcurrent protection with delayed intervention
Management of temporary short circuits (start up of asynchronous motors)
Open collector output (not insulated) signalling intervention of protective devices (insulation on optional DI1 module) with programmable activation with respect to the individual alarms and the possibility to delay intervention
Abnormal operation conditions storage (type of alarm, number of events, duration of the last event, total time)
Memorization of the regulator operation time (starting from revision 11 of the Firmware)
USB communication interface (with an optional USB2DxR module)
