Product Description

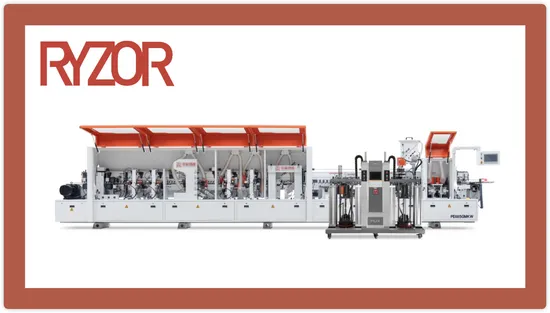

PE-685GMKW dual color PUR coating automatic straight edge banding machine

Technical parameters/model PE-685GMKW-PUR
Dimensions (mm)	8800*950*1620	plate thickness	10-60mm
Power	26KW	Sheet length	150mm
Processing speed	15-23m/min	Sheet width	80mm
Edge banding thickness	0.4-3mm	Minimum board size (mm)	300(L)*80(W),150(L)*150(w)
Edge banding width	12-65mm

Product Characteristics: This machine is mainly used for edge banding of furniture panels. The edge banding machines currently used by furniture production companies are equipped with dual glue pot edging units, allowing simultaneous heating of two different colors of hot melt glue and the use of different types of glue, which can be quickly and automatically switched according to edging needs, meeting the requirements of customized production. Additionally, the machine can be optionally equipped with pneumatic point-adjustable trimming, enabling quick switching between thin and thick edge banding tapes. Its characteristics include automation, high efficiency, high precision, and aesthetic quality. It has already been widely applied in domestic panel furniture production companies. There are also more optional enhancements available. For details, refer to the functional group processing workflow.

Main Operational Functions: 1. Pre-Spray Device: Applies a separating agent. 2. Pre-Milling: Prepares the panel edge. 3. Dual Glue Pot: - Upper Glue Pot with Heat Lamp Heating: Applies glue and attaches edge banding (includes upper glue pot and quick melt glue). - Lower Glue Pot with PUR Adhesive: Applies glue and attaches edge banding (optional upgrade to Laser edge banding). 4. High-Speed End Trimming: Quickly trims panel ends. 5. Trimming 1 (Optional for Rough Trimming): Initial edge trimming. 6. Trimming 2: Secondary edge trimming. 7. Profiling Tracking: Ensures accurate edge profiling. 8. Scraping 1: Initial edge scraping. 9. Scraping 2: Secondary edge scraping. 10. Flexible Flat Scraping: Provides a smooth finish. 11. Post-Spray Device: Applies a cleaning agent. 12. Polishing 1 and Polishing 2: Dual polishing stages for a high-quality finish.

Guangdong Rongyao Future Technology Co., Ltd. is an advanced enterprise specializing in the production and export of woodworking machinery. The company was established in 2008 and has a history of 16 years. We offer a variety of services, not only providing customers with high-quality woodworking machinery, but also providing sufficient maintenance, spare parts, and technical consultation. We are committed to providing one-stop services for factory production and have developed a series of panel furniture equipment, such as a full range of edge banding machines (including pressure wheel edge banding machines, high-speed rail edge banding machines, and intelligent flexible edge banding machines), computerized panel saws, CNC drilling machines, CNC cutting machines, and automated production line equipment. Our machines have been sold to more than 20 countries around the world, such as Russia, South Korea, Spain, the United States, Malaysia, Italy, Africa, Brazil, Australia, the United Kingdom, Germany, Thailand, Canada, Portugal, Türkiye, Ukraine, Iran, Vietnam, Dubai, Egypt, and so on, and have received unanimous praise and support from customers.

Our machines have been sold to more than 20 countries around the world, such as Russia, South Korea, Spain, the United States, Malaysia, Italy, Africa, Brazil, Australia, the United Kingdom, Germany, Thailand, Canada, Portugal, Türkiye, Ukraine, Iran, Vietnam, Dubai, Egypt, etc., and have received unanimous praise and support from customers.

Q1: Are you a manufacturer?
A1: Yes. We have 16 years of production and export experience.
Q2: Regarding MOQ
A2:1 set, we are OEM, and I will give you a more competitive price than the market.
Q3: Can you customize this machine?
A3: Of course, our machines can be customized according to the buyer's requirements.
Q4: How do I place an order?
A4: Please tell me your question and I will do my best to help you.
Q5: If I want cheaper quality, can you produce it?
A5: Yes, just send us your detailed quality information, such as materials, which parts are cheaper, etc. We will calculate and determine the price based on your requirements.
Q6: If the quantity is large, what is the good price?
A6: Please send us detailed inquiry information, such as product number, quantity of each product, quality requirements, logo, payment terms, transportation method, unloading location, etc. We will provide you with an accurate quotation as soon as possible.

---
