Hydraulic Strand Jack with Synchronous Lifting for Heavy Lifting Hydraulic Lifting System

Product Description

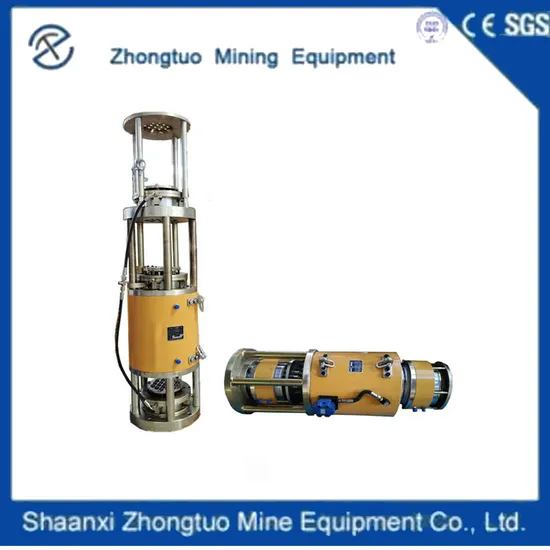

Hydraulic Strand Jack with Synchronous Lifting System

Name: Hydraulic Lifting Strand Jack for Heavy Lifting. The working principle of this advanced product combines prestressed anchor anchoring technology with hydraulic jack technology. It functions by anchoring the steel strand through the anchor and then utilizing computer-controlled centralized flow and oil pressure output from the hydraulic pump station. Through this process, the device effectively drives the jack piston to extend and contract, allowing for the synchronized lifting, lowering, and continuous translation of the steel strand and the component. This versatile equipment finds extensive application in both domestic and international settings, particularly in the vertical hoisting or lowering of large-scale structural parts. Its uses include the hoisting of steel box girders for bridges, the lowering of bridge piers and weirs, the hoisting or lowering of hanging blue, the hoisting of chimney steel inner cylinders for power plants or chemical plants, the hoisting of steam drums and stators for power plants, as well as gantry crane installation, aircraft maintenance garages, gymnasiums, and other steel structures. With its professional and rigorous design, this hydraulic lifting strand jack is a reliable choice for heavy lifting tasks.
The working principle:
To integrate the prestressed anchor anchoring technology with the hydraulic jack technology, anchor the steel strand through the anchor, and then use the computer to centrally control the flow and oil pressure output of the hydraulic pump station.
The device drives the jack piston to extend and contract (displacement sensor device)and forces the steel strand and the component to rise, descend, and continuously translate to realize the overall synchronous lifting (translation) and lowering movement.
Product parameters Technical Parameter of Synchronous lifting jack

model	Safe working load	Working pressure MPA	Cylinder stroke mm	Retraction height mm	Jack weight KG	Fixed anchor weight KG	boost speed m/h	Number of strands	Strand diameter
ZT-TSD15	15	31.5	500	1846	148	3.2	0-25	1	18
ZT-TSD45	45	31.5	500	1726	600	28	0-25	3	18
ZT-TSD60	60	31.5	500	1726	630	32	0-25	4	18
ZT-TSD100	100	31.5	500	1790	930	46	70-25	7	18
ZT-TSD180	180	31.5	500	1886	1560	90	0-25	12	18
ZT-TSD280	280	31.5	500	1938	2330	130	0-25	19	18
ZT-TSD300	300	31.5	500	1940	2460	140	0-25	20	18
ZT-TSD400	400	31.5	500	2100	3396	220	0-25	27	18
ZT-TSD580	580	31.5	500	2220	4980	260	0-25	38	18
ZT-TSD680	680	31.5	500	2180	5410	320	0-25	45	18
ZT-TSD800	800	31.5	500	2200	6880	360	0-25	54	18
ZT-TSD1000	1000	31.5	500	2286	8520	560	0-25	66	18

About Certifications:
Packing and Shipping:
FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Why you choose us:
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.

---
