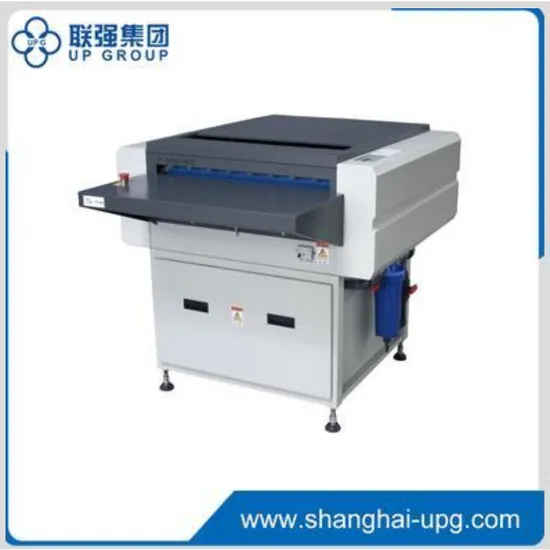

LQ-Series UV CTP Plate Processor

Product Description

Product Description:
Computer-controlled process, suitable for 0.15-0.4mm all kinds of CTP plate.
Characteristic:
1. Computer-controlled process, suitable for 0.15-0.4mm all kinds of UV CTP, positive and negative PS plate.2. Developing, washing, gumming and drying complete in one machine. Unique solution cycle ways and digital techniques for developing and brush speed independent speed CVT. 3. Digital temperature control, temperature setting and actual temperature clearly displayed, alarming and error-displaying also available.5. Developing liquid filtering system, liquid guaranteed clear and developing guaranteed stable. Plus usage-period is extended and cleaning load is reduced.6. Accurate developing liquid supply system, liquid guaranteed stable.7. Special water-saving design, water running only when plate is moving, no more whole-process water consuming.8. Twice washing with optional glue control, which makes convenience of second washing and gluing after plate repair operation.9. Automatic rubber roller smoothing, avoiding rubber roller drying out after long-time standing by.10. Automatic rubber roller cleaning, avoiding rubber roller harden after long-time break.
Product Parameters

Model	LQ-700	LQ-880		LQ-1100		LQ-1250		LQ-1450
Max. plate width	700mm	880mm		1150mm		1300mm		1500mm
Min. plate length	300mm
Developer capacity	24L	30L		35L		45L		60L
Plate thickness	0.15-0.40mm
Developer temperature	15-40ºC
Developing time	20-60 seconds
Dry temperature	30-60ºC
Brush speed	20-150rpm
Chiller	Optional
Power	1PH, AC220V, 15A						1PH, AC220V, 25A
Weight	320KG		400KG		550KG		620KG		700KG
Dimensions (mm)	2440x1060x1050		2440x1240x1050		2440x1420x1050		2440x1570x1050		2440x1720x1050

Company Profile
Superiority A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.

Our Customers
Exhibitions
Export Markets UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.

---
