Travel Switch Yblx-P1-/120/1g for Hls120 Hls180 Concrete Mixing Batching Plant Spare Parts

Product Description

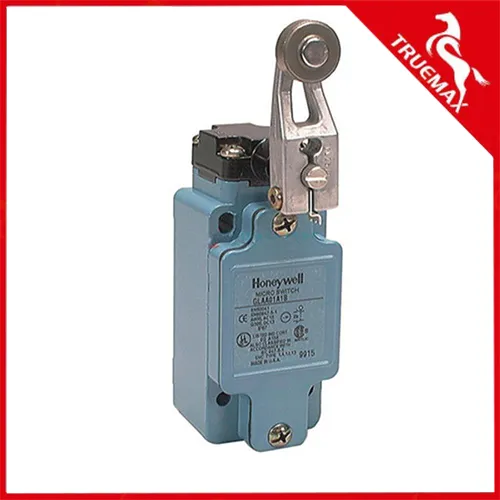

Travel Switch YBLX-P1-/120/1G For Hls120 Hls180 Concrete Mixing Batching Plant

Product Details

1).N/O and N/C, brass contact, Silver tip

2)With strong aluminum die-cast cover

3)Structure preventing oil,water and pressure

4)Indicating plate with setting position is installed in it,ao it is easy to maintain

5)Various of actuators is taken convenience for using

6)Built-in contact stand has double-spring,so it has long mechanical life

Material	Aluminium body with stainless steel pin plunger
Degree of protection	IP65
Mechanical	15,000,000 operations
Rated frequency	50/60 Hz
Protection against electric shock	Class I
Ambient operating temperature	-10°C to +80°C (with no icing)
Ambient operating humidity	35% to 95% RH

ITEM		Data
Rating load		10A/250VAC
Operating speed		1mm-50cm/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Protection degree		IP66
Operation temperature		-10~+80ºC
Operating humidity		<85%

OF Max	1360g
RF Min	227g
PT Max	20º
OT Min	30º
MD Max	12º
EP Max	2720g
OP	50º

Notice: Delivery time : (3-5 days) Packinf: Carton or wooden case packing Warranty: 3-12 months 24 hours online service
Company information:

TRUEMAX specialized in the production of construction machinery spare parts, such as: concrete batching plant, concrete truck mixer, concrete placing boom, concrete pump, concrete line pump, concrete truck-mounted pump, building hoist.

---
