Product Description
Product Description

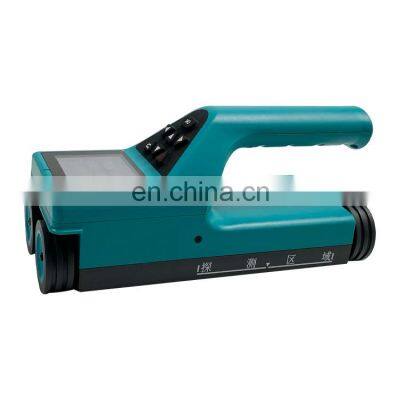

R800 Integrated Rebar DetectorUsage OverviewThe integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the rebar. In addition, it can also magnetize the inside of the concrete structure. The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.Product DescriptionSpecificationProduct ModelR800Rebar diameter setting range(mm)6mm~50mmSmall range1~90mmLarge range1~210mmSuper range1~240mmApplicable Scope of Diameter Estimation6~32mmHost ParametersScreen size:2.8inch; resolution:240x320Volume: 220x93x110mm; Weight: 0.6kgPower supplyLithium batteryStorage capacity2000 Components*1000 Measuring pointsWorking environment requirementsTemperature:-10℃~+40℃； Humidity:＜90%RHOther requirementsThere is no corrosive gas in the air. No strong electromagnetic interference. There should be no large vibration and shock.Instruments to avoid direct sunlight. 1.Style design, compact size, light weight, easy to carry, new upgrade wireless cloud transmission function, laser precise positioning of steel bar position;2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars.4.The waveform scanning mode also shows the thickness and spacing of the rebarprotective layer.5.It can detect the middle position of the two reinforcing bars, the aiming frame and the indication light, so as to facilitatedrilling and coring.6.The instrument automatically stores the calibration value, realizes fast measurement andavoids the trouble of each calibration.7.Boundary-free mesh/profile scanning, the length of waveform scanning can reach 6m at atime.8.TF card storage, large capacity, intuitive and convenient transmission;9. 2.8 inch high resolution color liquid crystal screen;10.PC professional data analysis software, data processing and report generation can be easily completed.Unpacking displayOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
>>
