Automatic CNC Pipe Cutting/Cutter Machine

Product Description

Numerical Control Pipe Cutting Band Saw Machine (PLC)
U Model: PCBSM-16Ba/24Ba/32Ba
U Performance features
Ø On-line Performance: Good (designed as per the one line equipment of the production line)
Ø Cutting efficiency: ≤2Min /one pipe cutting (DN200 SCH40);
Ø Opening quality: Good
Ø Application Range: Used for projects with a majority of standard wall thickness & heavy wall thickness
U Technical parameters
Ø Structure: Horizontal and with double columns, made special roller
Ø Pipe diameter applicable: DN50-400 (φ60-426mm); DN50-600 (φ60-610 ); DN200-800 (φ219-813 mm); Or custom made acc to requirements
Ø Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel
Ø Feeding speed: Stepless speed adjustment
Ø Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.
Ø Band saw tension: Tensioning & loosen automatically by hydraulic
Ø Cooling system: Built in coolant pump
Ø Speed of the band saw: 18, 42, 68 m/min; 27, 52 or 78 m/min; 15-80m/min (infinitely variable speeds);
Ø Size of the band saw: 4320*34*1.1mm; 6980X*41*1.3mm; 8880X67X1.6mm
Ø Dimension of machine: 2300*1200*1650mm; 3600*1450*2100mm; 4050X2000X2600mm
Ø Weight of machine: 1370KGS(±5%); 5000KGS (±5%); 8000KGS (±5%)
Ø Controlling System: PLC Control with touch screen (human machine interface)
Ø Self Length Measuring System Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off PCS then to carry out it one by one.
Ø Assist Length-measuring system: A mechanical Length-measuring system could be provided if necessary so as to fix the length of the pipes as well as cutting with the supporting of the band saw conveying system. This one is more suitable for long pipe length measuring to cutting off.
Ø Conveying system: Be equipped for a roller conveying system and driven by motor, variable frequency speed control system (If necessary)
Ø Voltage: 380V/ 415V/440V/3pH-50/60Hz or as per request and pls notice.
Welcome You to visit our website cn-qspt.en.made-in-china.com or our factory in Shanghai.

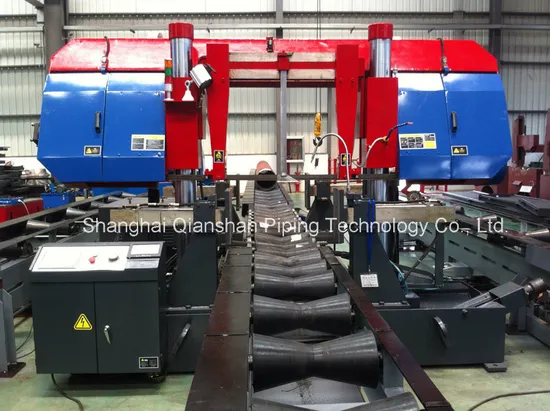

Reference Photos:

Model No.	PCBSM-16Ba	PCBSM-24Ba	PCBSM-32Ba
Pipe diameter applicable	2"-16"	2"-24"	8"-32"
Speed of the band saw	18,42,68 m/min	27, 52 or 78 m/min	15-80m/min
Size of the band saw	4320*34*1.1mm	6980X*41*1.3mm	8880x67x1.6mm
Dimension of machine	2300*1200*1650mm	3600*1450*2100mm	4050x2000x2600mm
Weight of machine	1370KGS( ± 5%)	5000KGS ( ± 5%)	8000KGS ( ± 5%)
Controlling System	PLC Control with touch screen (human machine interface)	PLC Control with touch screen (human machine interface)	PLC Control with touch screen (human machine interface)
Self Length Measuring System	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.	Measuring Length: 0.5m or 1 m per times as per data. Input the datas of you want to cutting off pcs then to carry out it one by one.

---
