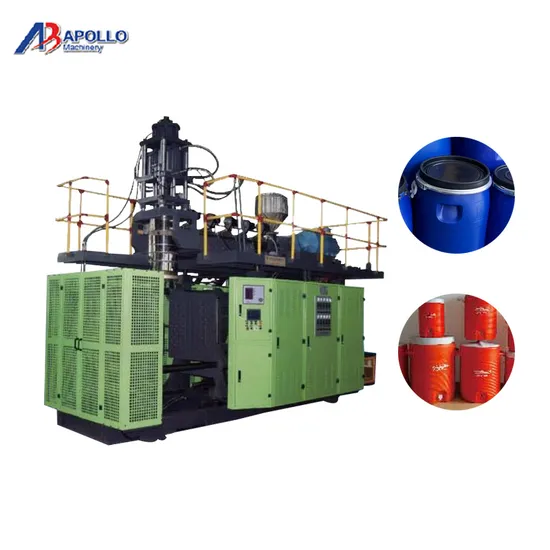

25 L Plastic Drum Making Machine

Product Description

Basic installation including
Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.
Unit price (including one series of spare parts)
Unite price (including one series of spare parts for wearing parts)
Basic information about this machine:

Max. Product volume	15 liters
Out put capacity	160pc/h
Screw diameter	90mm
Screw L/D ratio	24L/D
Screw drive power	45KW
Screw heating capacity	8KW
No.of heating zone	4 zones
Output of HDPE	128KG/H
Oil pump drive power	11KW
Clamping force	108KN
Max.size of mold	240-660mm
Mold stroke	530X 550mm
Max.die diameter	180mm
Blowing pressure	0.6mpa
Air Volume	0.9M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90L/MIN
Size of Machine	4.2x3x3.2m
Weight of machine	11ton

The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN REGION MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN REGION HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

---
