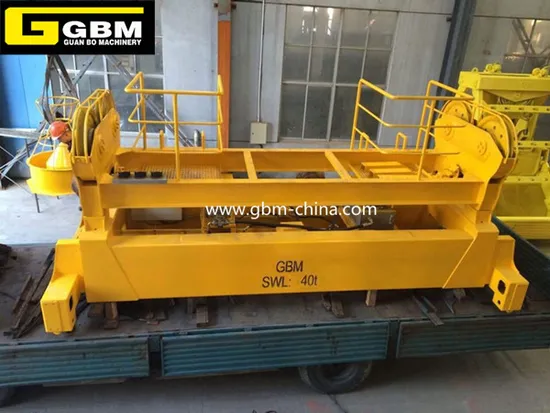

Electric Container 20FT 40FT Telescopic Spreader

Product Description

1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Product Description 1.Scope of supply One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring. Item 20' 40' Rated SWL 25-35T 32-45T Max. SWL 40T 50T Dead Weight 1.2-2.6T 1.2-2.6T 2.Overall Dimensions Item 20' 40' Distance between lock centers(length) ≈ 5853 mm ≈11985 mm Distance between lock centers(width) ≈ 2260 mm ≈2260 mm Overall Length ≈ 6058 mm ≈12188 mm Overall Width ≈ 2610 mm ≈2610 mm Frame Height ≈ 636 mm ≈731 mm 3. Technical Parameter Item 20' 40' Dia. of pressed wire rope slings 32 mm 36 mm Length of pressed wire rope slings 3.5m per piece (4 pieces for each set) 8.5m per piece (4 pieces for each set) Steel Frame Material Q345B Material Q345B 4. Surface Treatment & Painting 1. Flame dirt-remover, and then shot blasting. 2.Primer coating (Epoxy resin paint) app. 40µm Middle (Epoxy resin paint) app. 80µm Top paint (Polyurethane paint) app. 40µm.

2.Overall Dimensions

Item	20'	40'
Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
Overall Length	≈ 6058 mm	≈12188 mm
Overall Width	≈ 2610 mm	≈2610 mm
Frame Height	≈ 636 mm	≈731 mm

3. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B

4. Surface Treatment & Painting
1. Flame dirt-remover, and then shot blasting.

2.Primer coating (Epoxy resin paint) app. 40µm
Middle (Epoxy resin paint) app. 80µm
Top paint (Polyurethane paint) app. 40µm.

---
