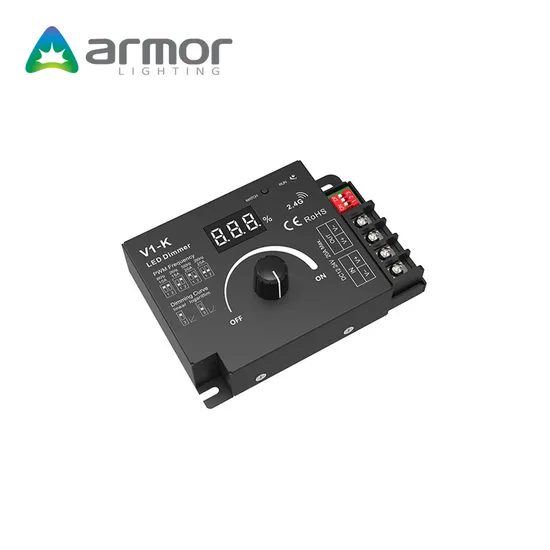

V1-K 12-24VDC 20A 1 Channel Rotary Numeric Display LED PWM Dimmers Controller RF Receiver

Product Description

Features Rotary dimmer with digital numeric display, visible dimming level. Match with RF 2.4G single zone or multiple zone dimming remote control optional. 0-100% dimming smoothly without any >ash. High load current up to 20A. Logarithmic or linear dimming curve selectable. PWM frequency 500Hz, 2kHz, 8kHz or 16kHz selectable. Over-heat / Over-load / Short circuit protection, recover automatically. Light on/off fade time 3s selectable.

Inpuf and Oufput
Input voliage	12-24VDC
Input current	20A
Output voliage	12-24VDC
Ouput current	ICH,20A Max.
Output power	240W/480W Max.
	@(12v/24v)500Hz PWM
Ouput ype	Constant volage
Dimming data
Input signal	Patary Knob + RF 2.4GHz
Control distance	15m(Barrier-free space)
Dimming gray scale	100levels
Dimming range	0 -100%
Dimming curve	Logarithmic or linear
PWM frequency	500Hz ,2kHz,8kHz,16kHz
Safety and EMC
EMC standard (EMC)	ETSI EN 301 489-1 V2.2.3
	ETSI EN 301 489-17 V3.2.4
Safety standard(LVD	EN 62368-1:2020+A11:2020
Radio Equipment(RED)	ETSI EN 300 328 V2.2.2
Certification	CE,EMC,LVD,RED
Environment
Operation temperature	Ta: -30°C ~ +55°C
Case temperature (Max.)	T c:+85°C
IP rating	IP20
Warranty and Protection
Warranty	5 years
Protection	Reverse polarity
	Over-heat
	Over-load
	Short circuit

Q1: What is your minimum order quantity?
A:Usually MOQ is 50m, but we also accept small order for trail.
Q2:Is a free sample order available?
A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.
Q3:How long of the lead time?
A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.
Q4:Can LED strip be customized?
A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.
Q5:What's your warranty?
A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment?
A: YES,We have our own shipping agency FOB Guangzhou,supply FCL&LCL.
Q7:Does your lighting equipment have CE or more certificates?
A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging?
A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc.
