Commercial CNC Grinding Machine for Tct Saw Blade Atz400

Product Description

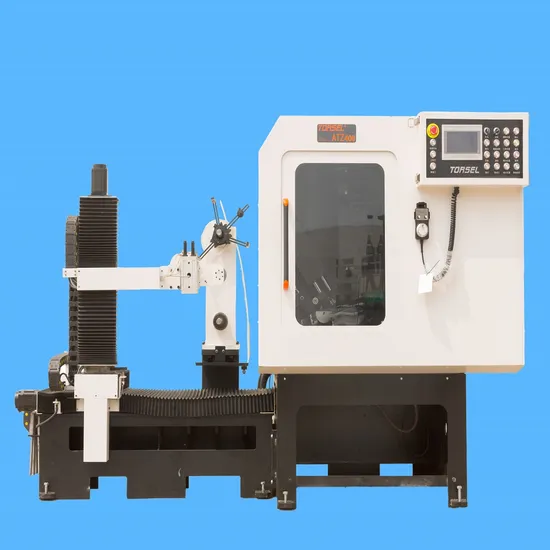

commercial CNC grinding machine for tct saw blade ATZ400
1. Machine Features and Advantages 1) Used for grinding tct tooth top surface. With auto loading robot, suitable for mass production
2) Easy operation: CNC with friendly interface panel, all parameters can be set directly and stored automatically
3) High efficiency: robot auto load & adjustable grinding speed
4) Good accuracy: <0.025mm, satisfactory sharpening performance
5) Good stability: use specially treated cast iron base, no deformation,low vibration,long term use.
2. Machine Parameters

Saw diameter	140~400mm
Bore diameter	15.88~50mm
Plate thickness	<8mm
Top angle	-10°~+26°
bevel angle	-45°~+45°
Pitch	<60mm
Kerf	<6mm
Wheel power	1.1KW
Wheel size	125mm*32mm*25mm
Wheel speed	4200RPM
Wheel linear velocity	28m/s
Grinding speed	1mm~15mm/s
Processing efficiency	4~20 s/tip
Grinding accuracy	<0.025mm
Coolant tank	150L
Cooling water flow	70L/min
Input voltage	380V 50Hz(OR 220V 60Hz)
Power	Approx 3.8KW
Dimension	2750mmX1200mmX1850mm
Weight	1900kg

3. Machine Details

4. Machine Main Components

Roller guide	HIWIN(Taiwan)
Ball screw	IF(Germany)
Servo	Inovance
PLC	Inovance ARM600
Pneumatic component	SMC(Japan)

FAQ
1. What products do we have?
Four categories saw blade grinding machines:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. grinding machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade grinding machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade grinding machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
