Container Loading and Unloading Mobile Container Crane Price for Warehouse 40 Tons

Product Description

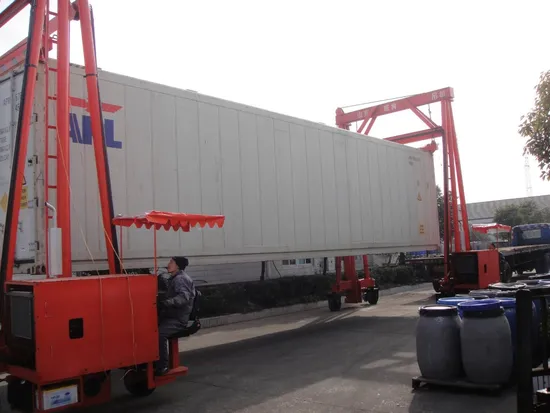

Container crane is a kind of lowest work cost crane of container, special suit for container plastform. This crane adopts multicyliner diesel engine and features low operating noise and low vehicle vibration. The main body consists of a steel frame, steel wire rope, the hydraulic motor of the hydraulic transmission system, gear pump, steering cylinder, lifting cylinder, double-acting balance valve, and walking solid tire. The lifting mechanism adopts four cylinders with a diameter of 180 mm, which have a large lifting capacity, a small system pressure, a stable and safe lifting and lowering, and high loading and unloading efficiency. It adopts two-wheel drive, four-wheel steering, and a large rotation angle of up to 110 degrees. It can realize steering and translation at any angle, and the turning radius is small. The control system consists of a complete set of the valve body and operating rod, which is simple, convenient, and flexible to operate.
Package and container loading:
Specifications:

Number	Items	Model 400A
1	Load capacity	40T
2	Max. lifting height	4000mm
3	Max. lifiting speed	0.03m/s
4	total weight	9.3T
5	Engin power/ rotate speed	36.8/2650KW/r/min
6	Engine model	490BG(four-cylinder engine)
7	Max. torque/ rotate speed	≥ 148/1800-1900N·m/r/min
8	Max. traveling speed	1.5km/h
9	diameter of lifting cylinder	Φ203mm
10	diameter of steering cylinder	Φ75mm
11	Torque of hydraulic motor	1633N·m
12	Rotate speed of hydraulic motor	4-400r/min
13	diameter of drive wheel	Φ500mm
14	min. space from floor	55mm
15	overall length	4900
16	overall width	2550
17	overall height	6500

---
