US$0.35
1,000-9,999 Meters
US$0.33
10,000-49,999 Meters
Basic Info.
Model NO.
1/4", 1/2", 1", 2"
Transport Package
Plastic Weaving Bags
Trademark
SKYLINE/HIPOWER
Production Capacity
10000meters/Day
Product Description

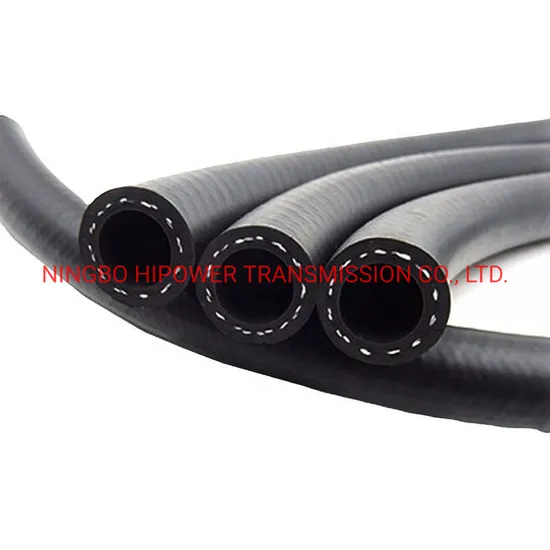

AIR / WATER / FUEL / OIL RUBBER HOSE
Instroduction
. Tube: SBR blended black smooth or NBR black with oil resistance, acid & alkali resistance, reinforced with high tension textile.
. Cover: SBR/EPDM blended or NBR synthetic rubber with wearing resistance, ozone & ageing resistance, oil resistance, heat resistance.
. Application: used to deliver compressed air without or with oil mist, non crosive fluid, other general purpose
. Temperature range: -30 ºC to + 100ºC
Technical Data
Type: 20 Bar W.P.
| Size(inch) | I.D. mm | O.D. mm | W.P. Bar | B.P. Bar | MBR mm | Weight kg/m | Length Max m |
| 1/2 | 13 | 21 | 20 | 80 | 78 | 0.39 | 100 |
| 3/4 | 19 | 28 | 20 | 80 | 114 | 0.55 | 100 |
| 1 | 25 | 34 | 20 | 80 | 150 | 0.70 | 100 |
| 1-1/4 | 32 | 43 | 20 | 80 | 200 | 0.90 | 100 |
| 1-1/2 | 38 | 49 | 20 | 80 | 250 | 1.10 | 100 |
| 2 | 51 | 64 | 20 | 80 | 350 | 1.60 | 100 |
| 3 | 76 | 92 | 20 | 80 | 500 | 2.90 | 100 |
| 4 | 102 | 121 | 20 | 80 | 650 | 4.30 | 100 |
| 5 | 127 | 146 | 20 | 80 | 800 | 5.50 | 100 |
| 6 | 152 | 175 | 20 | 80 | 960 | 6.80 | 100 |
W.P. 10Bar.40Bar with the same sizes as above available
105ºC and 125ºC Heat Resistant Fuel/Oil Hose available
Production & Workshop
Packing & Warehouse
Loading & Transportation
Application
Other rubber hose products
Industrial Rubber Hose: Air / Water hose, Oil Fuel Hose, Welding Hose, Suction & Discharge Hose, Sandblasting Hose, PVC Flat Layflat Hose
Suction Rubber Hose Sandblasting Hose
Hydraulic Rubber Hose: SAE100R1AT, R2AT, RS/R6, R7/R8, 4SP/4SH/R12, R13/R15
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products
Q2. What about the lead time of the sample or the final order?
3-7 days for normal samples
20-40 days for a formal order
Q3. How much is the minimum quantity for each item in one order?
100meters for each item
Q4. Is it possible to print your logo or brand on the hose?
Yes, we can print your log or design on the hose after receipt of your formal authorization.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all the listed rubber hose
>>
