Hot Sales 10.6um CVD Znse Focus Lens Dia20mm Focal Length 38.1, 50.8, 72.6

Product Description

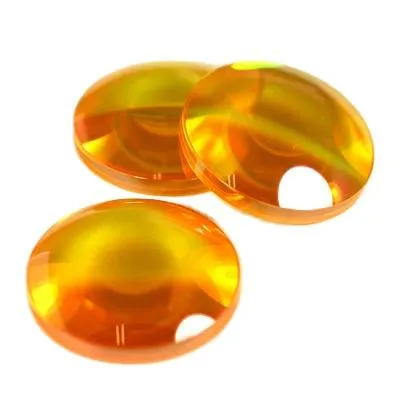

ZnSe Focusing Lens Focusing lenses are used to focus laser beam. The objective of focusing the laser beam is to concentrate the laser power for material processing. ZnSe Lenses arewidely used for CO2 laser applications because of its low absorption at infrared wavelengths as well as its visible transmission. LZM Series - ZnSe Positive Meniscus Lens Positive meniscus lenses are designed to minimize spherical aberration, and produce minimum focal spot size for incoming collimated light. LZ Series - ZnSe Plano-Convex Lens LZ Series - ZnSe Plano-Concave Lens

Part NO.	Wavelength (um)	Dia mm	EFL mm	CT mm	ET mm	Material
LZM-9.3-20-50.8-ET2.21	9.3	20	50.8	2.91	2.21	ZnSe
LZM-9.3-25.4-76.2-ET2	9.3	25.4	76.2	2.75	2	ZnSe
LZM-9.3-25.4-203.2-ET2	9.3	25.4	203.2	2.3	2	ZnSe
LZM-9.3-27.94-63.5-ET3	9.3	27.94	63.5	4	3	ZnSe
LZM-9.3-27.94-95.25-ET4.2	9.3	27.94	95.25	4.92	4.2	ZnSe
LZM-9.3-38.1-152.4-ET3	9.3	38.1	152.4	3.85	3	ZnSe
LZM-9.4-19.05-38.1-ET2	9.4	19.05	38.1	2.85	2	ZnSe
LZM-9.4-19.05-50.8-ET2.17	9.4	19.05	50.8	2.8	2.17	ZnSe
LZ-9.4-25-76.2-ET2	9.4	25	76.2	2.72	2	ZnSe
LZM-9.4-25.4-25.4-ET2	9.4	25.4	25.4	4.35	2	ZnSe
LZ-9.4-25.4-38.1-ET1.58	9.4	25.4	38.1	3.11	1.58	ZnSe
LZM-9.4-25.4-67-ET3	9.4	25.4	67	6.36	3	ZnSe
LZM-9.4-25.4-50.8-ET3	9.4	25.4	50.8	4.14	3	ZnSe
LZ-9.4-25.4-50.8-ET2	9.4	25.4	50.8	3.14	2	ZnSe
LZ-9.4-25.4-76.2-ET3	9.4	25.4	76.2	3.76	3	ZnSe
LZM-9.4-25.4-100-ET3	9.4	25.4	100	3.55	3	ZnSe
LZ-9.4-25.4-101.6-ET3	9.4	25.4	101.6	3.57	3	ZnSe
LZ-9.4-25.4-135.1-ET3	9.4	25.4	135.1	6	3	ZnSe
LZ-9.4-25.4-140.9-ET3	9.4	25.4	140.9	6	3	ZnSe
LZ-9.4-25.4-145.4-ET3	9.4	25.4	145.4	6	3	ZnSe
LZ-9.4-25.4-150-ET3	9.4	25.4	150	5.5	3	ZnSe
LZM-9.4-38.1-50.8-ET3	9.4	38.1	50.8	5.6	3	ZnSe
LZ-9.4-38.1-63.5-ET3	9.4	38.1	63.5	5.1	3	ZnSe
LZ-9.4-38.1-127-ET3	9.4	38.1	127	4	3	ZnSe
LZM-9.4-38.1-127-ET2.98	9.4	38.1	127	4	2.98	ZnSe
LZM-9.4-48-75-ET3	9.4	48	75	5.8	3	ZnSe
LZM-9.4-38.1-63.5-ET3	9.4	38.1	63.5	5.08	3	ZnSe
LZM-9.4-40-112-ET4.24	9.4	40	112	5.5	4.24	ZnSe
LZM-9.4-38.1-76.2-ET3	9.4	38.1	76.2	4.7	3	ZnSe
LZM-9.4-38.1-101.6-ET3	9.4	38.1	101.6	4.3	3	ZnSe
LZ-10.6-8-50-ET2	10.6	8	50	3	2	ZnSe
LZ-10.6-11-40-ET2	10.6	11	40	2.28	2	ZnSe
LZ-10.6-12-13.31-ET2	10.6	12	13.31	3	2	ZnSe
LZM-10.6-12-18.6-ET2-LP	10.6	12	18.6	2.69	2	ZnSe
LZM-10.6-12-18.6-ET2	10.6	12	18.6	2.69	2	ZnSe

---
