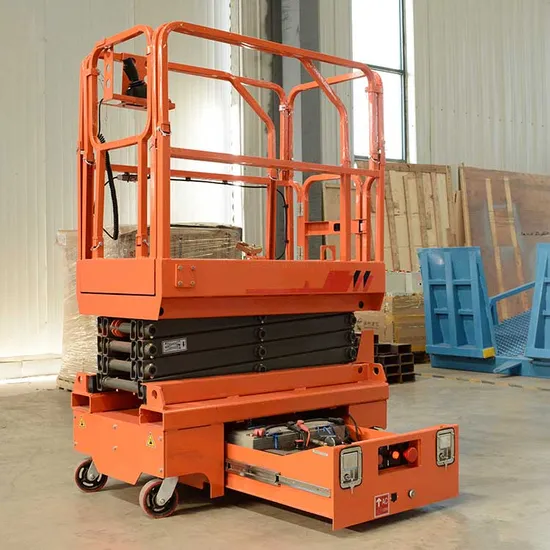

4m 300kg Lifting Platform Mobile Small Hydraulic Scissor Lift Aerial Platform

US$5,700.00 1 Piece (MOQ)

Basic Info.

Lift Mechanism

Screw Lift

Carrying Capacity

Middle-Level

Moves

Moving

Driven Type

Hydraulic

Running Mode

Moving

Feature

Insulating

Certification

Safe Working Load

320K

Safe Working Load of Extension

113kg

Maximum Number of Workers

Maximum Working Height

12m

Maximum Platform Height

10m

Overall Length

2600mm

Overall Width

1170mm

Transport Package

Wooden Case

Specification

10m

Origin

China

Production Capacity

1000sets

Product Description

Product Description
Standard configuration:
Proportional controls
Pothole protection
Self-lock door on platform
Extended platform
Solid non-making tires
2WD
Automatic brake system
Emergengy lowering system
Emergency stop button
Onboard diagnostic system
Safety brackets
Tilt alarm
Forklift pockets
Cylinder holding valve
Motion alarm
Operator horn
Hour meter
Charger protection
Flashing beacon
Folding guardrails

Model	Hightop-LP04	Hightop-LP06	Hightop-LP08	Hightop-LP10	Hightop-LP12	Hightop-LP14
Safe working load	320kg	320kg	320kg	320kg	320kg	320kg
Safe working load of extension	113kg	113kg	113kg	113kg	113kg	113kg
Maximum number of workers	2	2	2	2	2	2
Maximum working height	6m	8m	10m	12m	14m	16m
Maximum platform height	4m	6m	8m	10m	12m	14m
Overall length	2600mm	2600mm	2600mm	2600mm	2600mm	3200mm
Overall width	1170mm	1170mm	1170mm	1170mm	1170mm	1500mm
Overall height (fence not folded)	2160mm	2280mm	2400mm	2520mm	2640mm	2640mm
Overall height (fence folding)	1460mm	1580mm	1700mm	1820mm	1940mm	1940mm
Working platform size (length x width)	2400mm*1170mm	2400mm*1170mm	2400mm*1170mm	2400mm*1170mm	2400mm*1170mm	2800mm*1400mm
Platform extension size	0.7m	0.7m	0.7m	0.7m	0.7m	0.7m
Minimum ground clearance (retracted)	0.1m	0.1m	0.1m	0.1m	0.1m	0.1m
Minimum ground clearance (lifting	0.019m	0.019m	0.019m	0.019m	0.019m	0.019m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m
Minimum turning radius (inner wheel)	0	0	0	0	0	0
Minimum turning radius (outer wheel)	2.20m	2.20m	2.20m	2.20m	2.20m	2.20m
Lifting motor/drive motor	24v/4.0kw	24v/4.0kw	24v/4.0kw	24v/4.0kw	24v/4.0kw	24v/4.0kw
Machine ground speed (stowed)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine travel speed (lifting state)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Up / down speed	80/90 sec	80/90 sec	80/90 sec	80/90 sec	80/90 sec	80/90 sec
Battery	6V/230Ah	6V/230Ah	6V/230Ah	6V/230Ah	6V/230Ah	6V/230Ah
Charger	24v/25A	24v/25A	24v/25A	24v/25A	24v/25A	24v/25A
Max Climb Capability	25%	25%	25%	25%	25%	25%
Maximum allowable working angle (indoor / outdoor)	2°/3°	2°/3°	2°/3°	2°/3°	2°/3°	2°/3°
Tyre	Φ381*127	Φ381*127	Φ381*127	Φ381*127	Φ381*127	Φ381*127
Weight of whole machine	2000kg	2200kg	2400kg	2600kg	2800kg	3500kg
