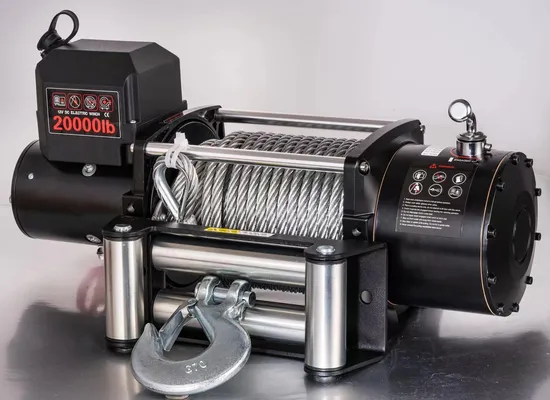

Heavy Duty Recovery Winch 20000lbs for Trucks with Steel Wire Rope

Product Description

SPECIFICATION:

SPECIFICATION:
Line Pull	2,0000lbs/9,071kgs
Motor	7.9HP Sealed Series Wound
Gear Train	4-stage planetary
Gear Ratio	544:1
Brake	Automatic, 100% load holding
Clutch	Rotate 180 degrees
Solenoid5	00A Sealed
Electric cables	23mm2, 40cm x 3pc, 180cm x 2pc
Wired Controller	3pin, 3.7m
Wireless Remote	Included
Rope	Wire Rope, 12mm×28m
Fairlead	4 way roller fairlead

LINE PULL

Layer of Wire Rope	Max Line Pull
1	20,000lbs/9,071kgs
2	17,000lbs/7,711kgs
3	16,100lbs/7,303kgs
4	15,230lbs/6,908kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	25.7FPM/7.8MPM	142
8,000lbs/3,628kgs	16.4FPM/4.9MPM	285
10,000lbs/4,536kgs	10.5FPM/3.2MPM	330
15,000lbs/6,804kgs	7.5FPM/2.3MPM	395
17,000lbs/7,711kgs	5.6FPM/1.7MPM	410
20,000lbs/9,071kgs	3.0FPM/0.9MPM	430

WINCH DIMENSIONS
618 x 196 x 260mm (24.3" x 7.7" x 10.2")
STANDARD ACCESSORIES
Controller
Wire Rope with Hook
4 Way Roller Fairlead
Wireless Remote
Control Unit
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 62kgs/136.7lbs
Gross Weight: 64kgs/141.1lbs
Box Dimension: 660×460×270 mm (26.0"×18.1"×10.6")
FEATURES:
-20% higher loading test than rated line pull.
-Heavy duty series wound motor delivers superior torque output and faster line speed.
-4-stage planetary gearbox delivers the most reliable and durable performance.
-Automatic brake in the drum provide powerful braking.
-Rotating ring gear clutch for the rapid rolling out of rope with ease.
-Installation, operation and maintenance with ease.
-Much lower working noise.
-Waterproof IP67 certification.
-CE, RoHS certification.
WE ARE DEDICATED TO WINCH MANUFACTURING AND 4WD SOLUTIONS
NINGBO CONQUEROR INDUSTRY CO.,LTD, designs and manufactures high quality electric winches and worm gear winches which are widely used in off-road vehicles, fire engines, industrial and commercial applications. Besides, we also supply reliable and durable 4x4 accessories like bull bars, rear bars, roof racks, roof tents, shock absorbers, air lockers, fender flares, snorkels, lift jacks, camp chair and other 4x4 accessories for off-road and outdoor.
We are an ISO certified organization and our products are certified with CE, RoHS. Now, our products have been exported to over 50 countries in the US, Europe, Russia, Asia, Australia, South America and Africa. Due to our good quality and competitive prices, we have gained high praise and good reputation from our clients.
Our company consists of a team of passionate people who have over 10 years' experience and profession in off-road industry. With concentration on products and good knowledge, we are always capable of providing the proper products to meet your requirement. Compared with other players, we are the most integrate supplier with profession, rich experiences, excellent communication skills and strong flexibility to shoot all problems. We sincerely hope we can help you if you need anything of 4x4 accessories.
Besides, we can provide OEM and ODM service to help you build your brand and expand your market. We always welcome new and existing clients to contact us or visit us for business cooperation.

---
